Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Connector | Working Lifespan | Operating Temperature Range | Housing Material | Direction Of Rotation | Enameled Wire Material | Magnet Material | Carbon Brush Material | Insulation Class | Number Of Pole Pairs | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 52812450 | DC528-124500 | Brushed DC Motor | 12 V | 4,500 rpm | 3,870 rpm | 80 mA | 230 mA | 1,360 mA | 44 gf·cm | 328 gf·cm | 1.75 W | 72 % | 32 mm | 29.1 mm | 71 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG32/SG37/SR37/TT/AF |
| 52812700 | DC528-12V7000 | Brushed DC Motor | 12 V | 7,000 rpm | 5,650 rpm | 140 mA | 610 mA | 3,030 mA | 80 gf·cm | 472 gf·cm | 4.60 W | 72 % | 32 mm | 29.1 mm | 71 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG32/SG37/SR37/TT/AF |
| 52824450 | DC528-244500 | Brushed DC Motor | 24 V | 4,500 rpm | 3,680 rpm | 40 mA | 130 mA | 590 mA | 48 gf·cm | 281 gf·cm | 1.80 W | 72 % | 32 mm | 29.1 mm | 71 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG32/SG37/SR37/TT/AF |
| 52824700 | DC528-24V7000 | Brushed DC Motor | 24 V | 7,000 rpm | 6,000 rpm | 80 mA | 280 mA | 1,540 mA | 71 gf·cm | 455 gf·cm | 4.40 W | 72 % | 32 mm | 29.1 mm | 71 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG32/SG37/SR37/TT/AF |
Technical Specifications

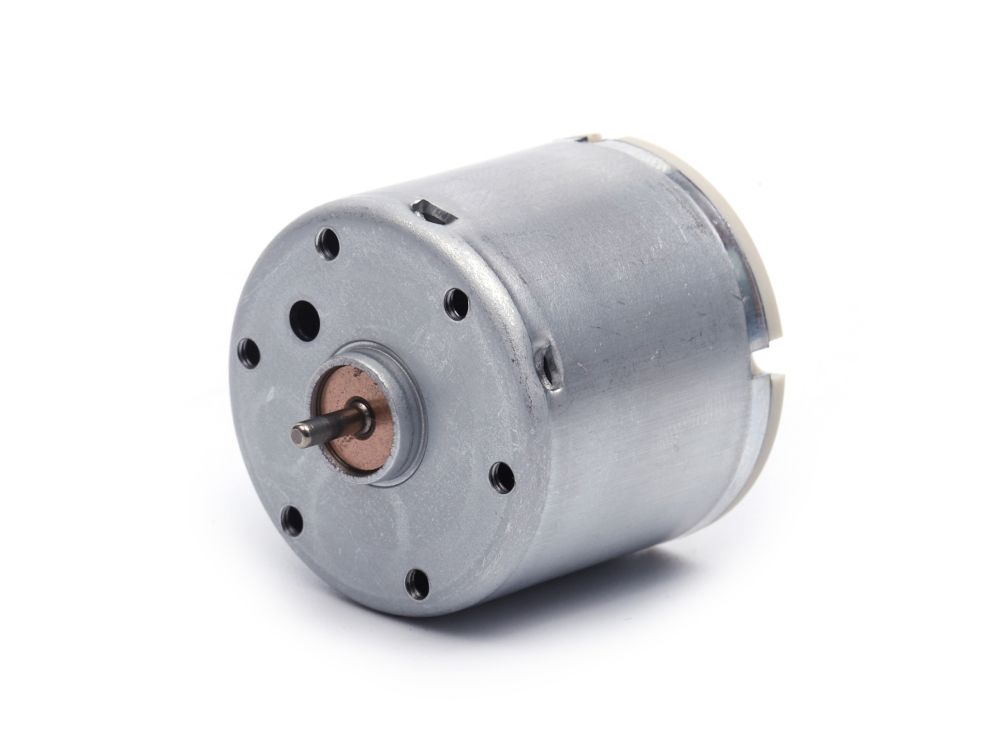

| Motor Model | DC528-124500 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 V |
| No Load Speed | 4,500 rpm |
| Rated Speed | 3,870 rpm |
| No Load Current | 80 mA |
| Rated Current | 230 mA |
| Stall Current | 1,360 mA |
| Rated Torque | 44 gf·cm |
| Stall Torque | 328 gf·cm |
| Rated Power | 1.75 W |
| Max Efficiency | 72 % |
| Motor Diameter | 32 mm |
| Motor Length | 29.1 mm |
| Motor Weight | 71 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 300 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG32/SG37/SR37/TT/AF |
