Model & Selection
Model & Specification Comparison
Technical Specifications

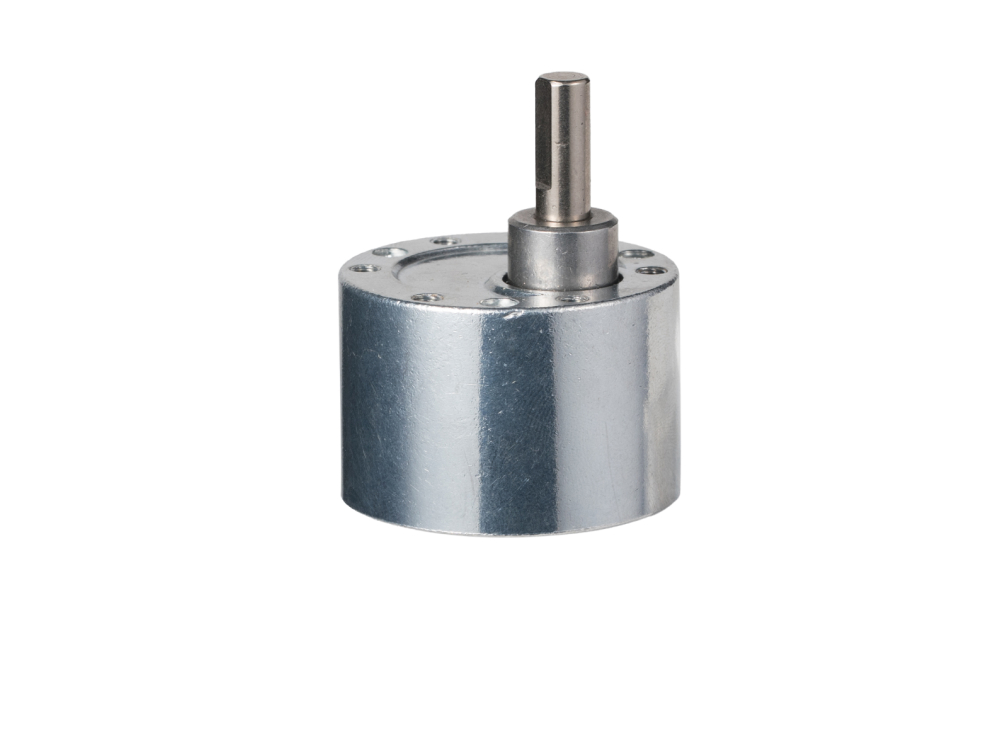

| Product Model | SG37528124500- |
|---|---|
| Gearbox Weight | 135 g |
| Rated Voltage | 12 V |
| No Load Speed | 450 rpm |
| Rated Speed | 387 rpm |
| No Load Current | 80 mA |
| Rated Current | 230 mA |
| Stall Current | 1,360 mA |
| Rated Torque | 356 gf·cm |
| Stall Torque | 2656.8 gf·cm |
| Rated Power | 1.42 W |
| Max Efficiency | 58.320 % |
| Motor Diameter | 37 mm |
| Gearbox Length | 51.6 mm |
| Gear Ratio | 10 :1 |
| Number Of Gear Stages | 2 |
| Max Continuous Torque | 1 kgf·cm |
| Instantaneous Break Torque | 3 kgf·cm |
| Backlash | 2 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 300 hours |
