Model & Selection
Model & Specification Comparison
Technical Specifications

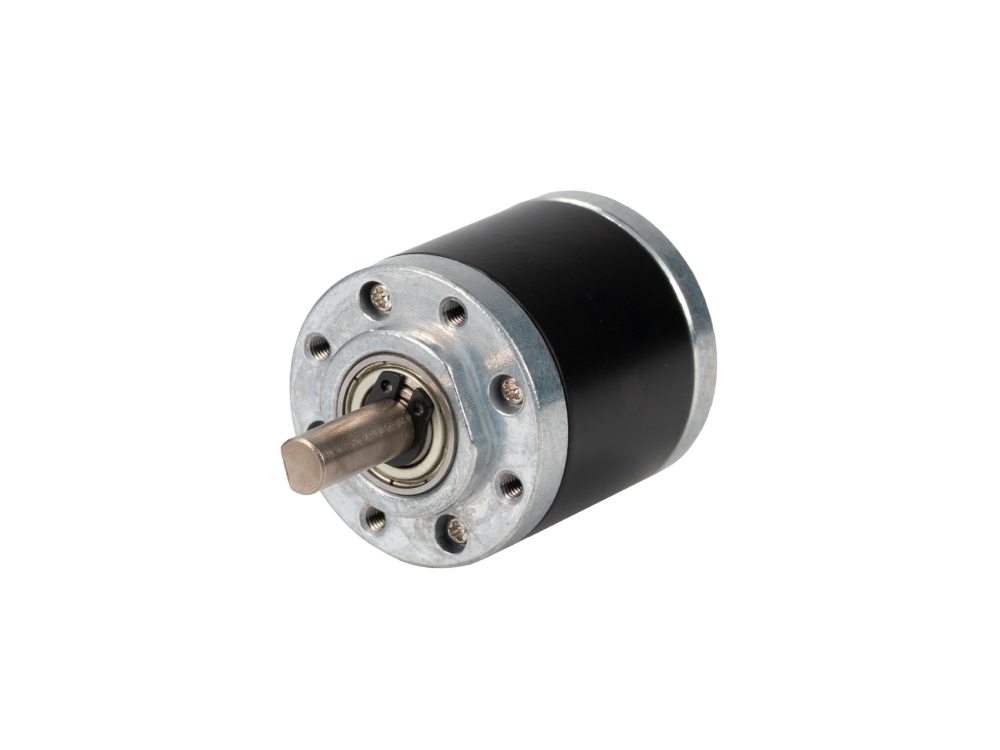

| Product Model | PG32528124500-5K |
|---|---|
| Gearbox Weight | 167 g |
| Rated Voltage | 12 V |
| No Load Speed | 900 rpm |
| Rated Speed | 774 rpm |
| No Load Current | 80 mA |
| Rated Current | 230 mA |
| Stall Current | 1,360 mA |
| Rated Torque | 198 gf·cm |
| Stall Torque | 1,476 gf·cm |
| Rated Power | 1.57 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 32 mm |
| Gearbox Length | 55 mm |
| Gear Ratio | 5 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 100 kgf·cm |
| Instantaneous Break Torque | 300 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 300 hours |
