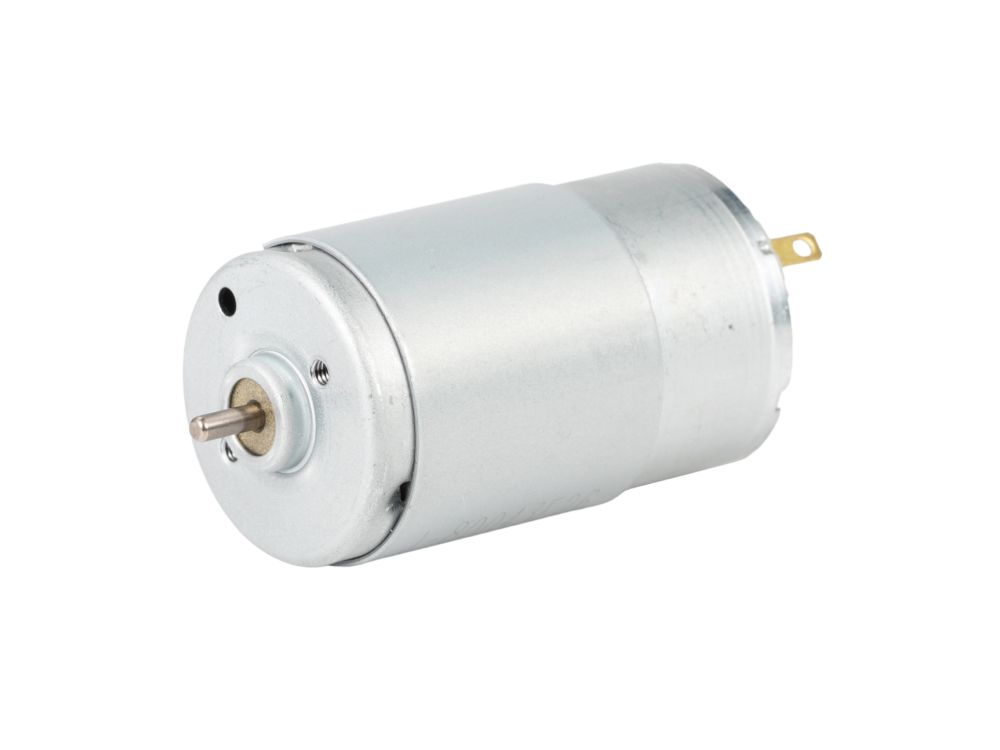

DC395 Brushed DC Motor

$3.99MSRP

Key Data

Electrical Options4 variants

DC395 12V 4500 RPM

Compatible Gear Motors3 products

Explore compatible models

SKU	Motor Model	Motor Type	Rated Voltage	No Load Speed	Rated Speed	No Load Current	Rated Current	Stall Current	Rated Torque	Stall Torque	Rated Power	Max Efficiency	Motor Diameter	Motor Length	Motor Weight	Shaft Diameter	Shaft Configuration	Connector	Working Lifespan	Operating Temperature Range	Housing Material	Direction Of Rotation	Enameled Wire Material	Magnet Material	Carbon Brush Material	Insulation Class	Number Of Pole Pairs	Gearbox
39512450	DC395-124500	Brushed DC Motor	12 V	4,500 rpm	3,879 rpm	110 mA	470 mA	2,650 mA	95 gf·cm	643 gf·cm	3.79 W	75 %	27.8 mm	46.5 mm	103 g	2.3 mm	Single/Dual	2	400 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG28/PG32/SR32
39512600	DC395-126000	Brushed DC Motor	12 V	6,000 rpm	5,359 rpm	180 mA	770 mA	4,610 mA	119 gf·cm	847 gf·cm	6.54 W	75 %	27.8 mm	46.5 mm	103 g	2.3 mm	Single/Dual	2	400 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG28/PG32/SR32
39524450	DC395-244500	Brushed DC Motor	24 V	4,500 rpm	3,990 rpm	90 mA	270 mA	1,530 mA	104 gf·cm	722 gf·cm	4.27 W	75 %	27.8 mm	46.5 mm	103 g	2.3 mm	Single/Dual	2	400 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG28/PG32/SR32
39524600	DC395-246000	Brushed DC Motor	24 V	6,000 rpm	5,200 rpm	300 mA	490 mA	2,720 mA	140 gf·cm	973 gf·cm	7.73 W	75 %	27.8 mm	46.5 mm	103 g	2.3 mm	Single/Dual	2	400 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG28/PG32/SR32

Motor Model	DC395-124500
Motor Type	Brushed DC Motor
Rated Voltage	12 V
No Load Speed	4,500 rpm
Rated Speed	3,879 rpm
No Load Current	110 mA
Rated Current	470 mA
Stall Current	2,650 mA
Rated Torque	95 gf·cm
Stall Torque	643 gf·cm
Rated Power	3.79 W
Max Efficiency	75 %
Motor Diameter	27.8 mm
Motor Length	46.5 mm
Motor Weight	103 g
Shaft Diameter	2.3 mm
Shaft Configuration	Single/Dual
Connector	2
Working Lifespan	400 hours
Operating Temperature Range	-30 ~ 65 C
Housing Material	Electrolytic zinc coated steel
Direction Of Rotation	CW/CCW
Enameled Wire Material	Enameled copper wire
Magnet Material	Ferrite
Carbon Brush Material	Metal graphite brush
Insulation Class	UEW
Number Of Pole Pairs	2
Gearbox	PG28/PG32/SR32
