SR32395 DC Gearmotors - Round

USD 9.98 MSRP

Key Data

Gearbox Weight: 136 g
Rated Voltage: 12 V
Rated Speed: 388 rpm
Rated Torque: 694 gf·cm
Rated Power: 2.77 W

Motor Options4 variants

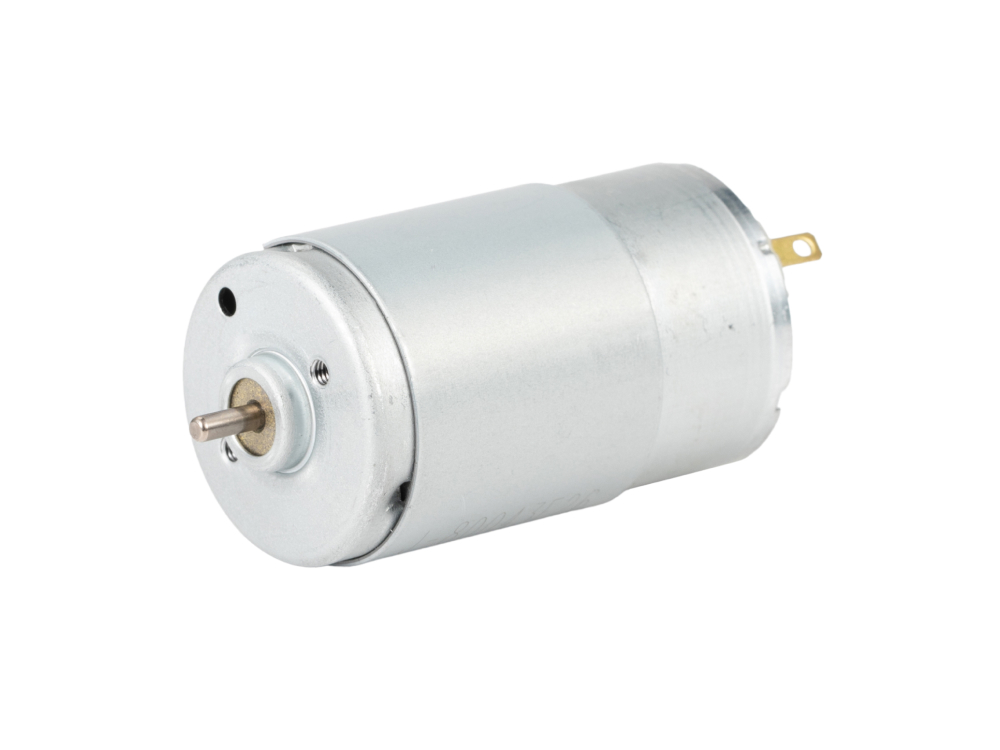

DC395 12V 4500 RPM

Gearbox Options10 variants

SR32 10:1

Request customization

Model & Specification Comparison

Motors 4 options

39512450 DC395 12V 4500 RPM In stock 99

Gearboxes 10 options

SR3210000 SR32 10:1 In stock 99

Product specifications
Product Model	SR32395124500-
Gearbox Weight	136 g
Rated Voltage	12 V
No Load Speed	450 rpm
Rated Speed	388 rpm
No Load Current	110 mA
Rated Current	470 mA
Stall Current	2,650 mA
Rated Torque	694 gf·cm
Stall Torque	4693.9 gf·cm
Rated Power	2.77 W
Max Efficiency	54.750 %
Motor Diameter	32 mm
Gearbox Length	71 mm
Gear Ratio	10 :1
Number Of Gear Stages	3
Max Continuous Torque	1 kgf·cm
Instantaneous Break Torque	3 kgf·cm
Backlash	2 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	400 hours
