Model & Selection
Dimensional Drawing
Model & Specification Comparison
Technical Specifications

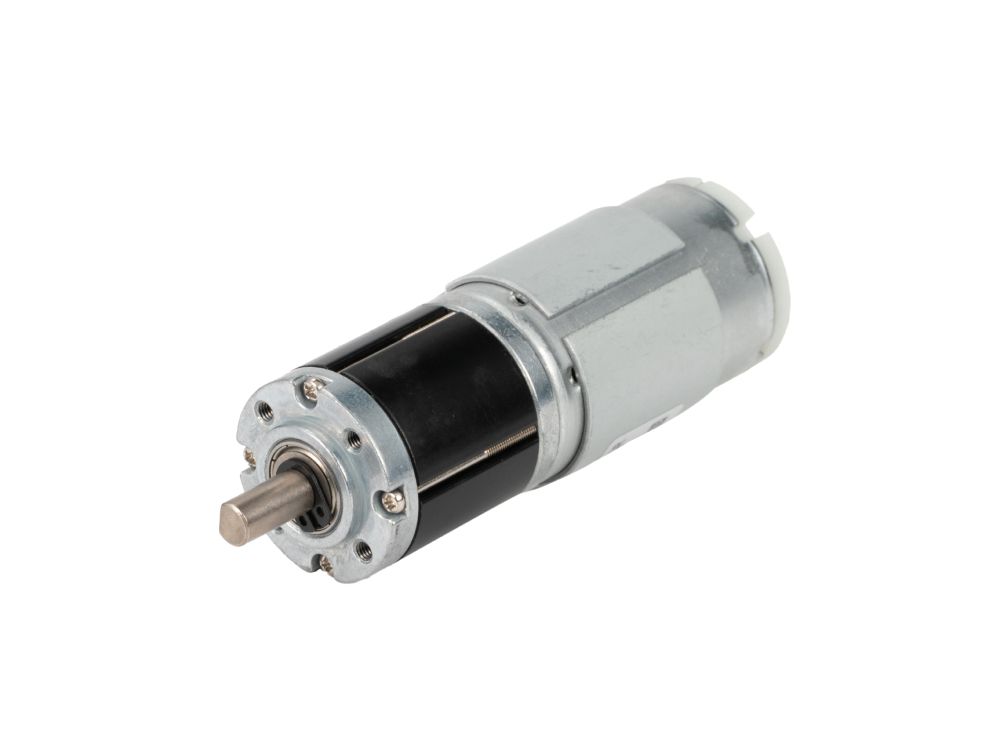

| Product Model | PG28395124500-5K |
|---|---|
| Gearbox Weight | 170 g |
| Rated Voltage | 12 V |
| No Load Speed | 900 rpm |
| Rated Speed | 776 rpm |
| No Load Current | 110 mA |
| Rated Current | 470 mA |
| Stall Current | 2,650 mA |
| Rated Torque | 432 gf·cm |
| Stall Torque | 2925.65 gf·cm |
| Rated Power | 3.44 W |
| Max Efficiency | 68.250 % |
| Motor Diameter | 28 mm |
| Gearbox Length | 72.4 mm |
| Gear Ratio | 5 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 20 kgf·cm |
| Instantaneous Break Torque | 60 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 400 hours |
