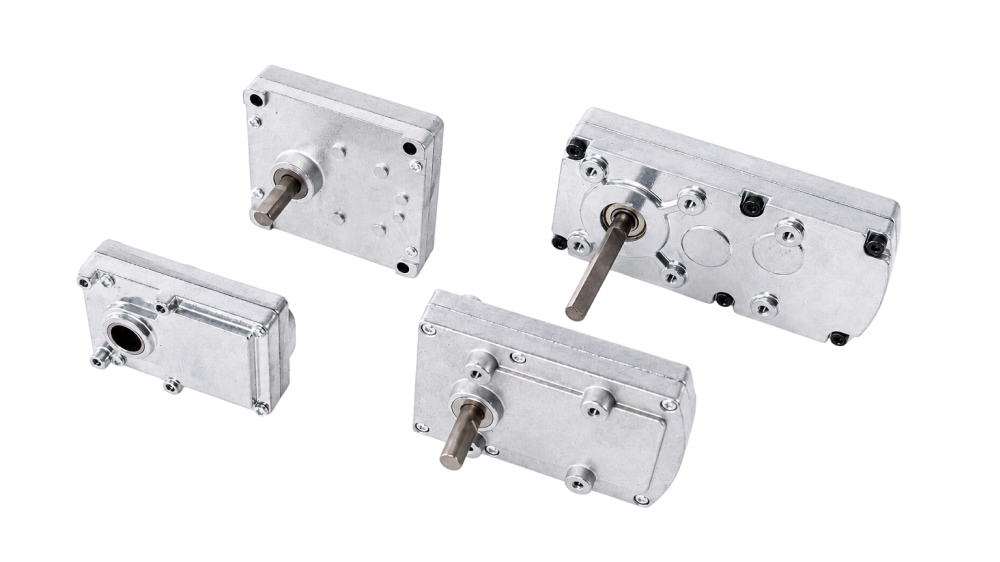

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VF3600 | Spur Gearbox - Flat | VF | 36 :1 | 3 | 76.2 mm | 69.8 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF6600 | Spur Gearbox - Flat | VF | 66 :1 | 3 | 76.2 mm | 69.8 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF9400 | Spur Gearbox - Flat | VF | 94 :1 | 3 | 76.2 mm | 69.8 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF1390 | Spur Gearbox - Flat | VF | 139 :1 | 4 | 76.2 mm | 69.8 mm | 18 mm | 20 kgf·cm | 60 kgf·cm | 65 % | 279 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF1550 | Spur Gearbox - Flat | VF | 155 :1 | 4 | 76.2 mm | 69.8 mm | 18 mm | 20 kgf·cm | 60 kgf·cm | 65 % | 279 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF1960 | Spur Gearbox - Flat | VF | 196 :1 | 4 | 76.2 mm | 69.8 mm | 18 mm | 20 kgf·cm | 60 kgf·cm | 65 % | 279 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF2190 | Spur Gearbox - Flat | VF | 219 :1 | 4 | 76.2 mm | 69.8 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 279 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF2770 | Spur Gearbox - Flat | VF | 277 :1 | 4 | 76.2 mm | 69.8 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 279 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF3920 | Spur Gearbox - Flat | VF | 392 :1 | 5 | 76.2 mm | 69.8 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 285 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF5550 | Spur Gearbox - Flat | VF | 555 :1 | 5 | 76.2 mm | 69.8 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 285 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| VF8330 | Spur Gearbox - Flat | VF | 833 :1 | 5 | 76.2 mm | 69.8 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 285 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
Technical Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|

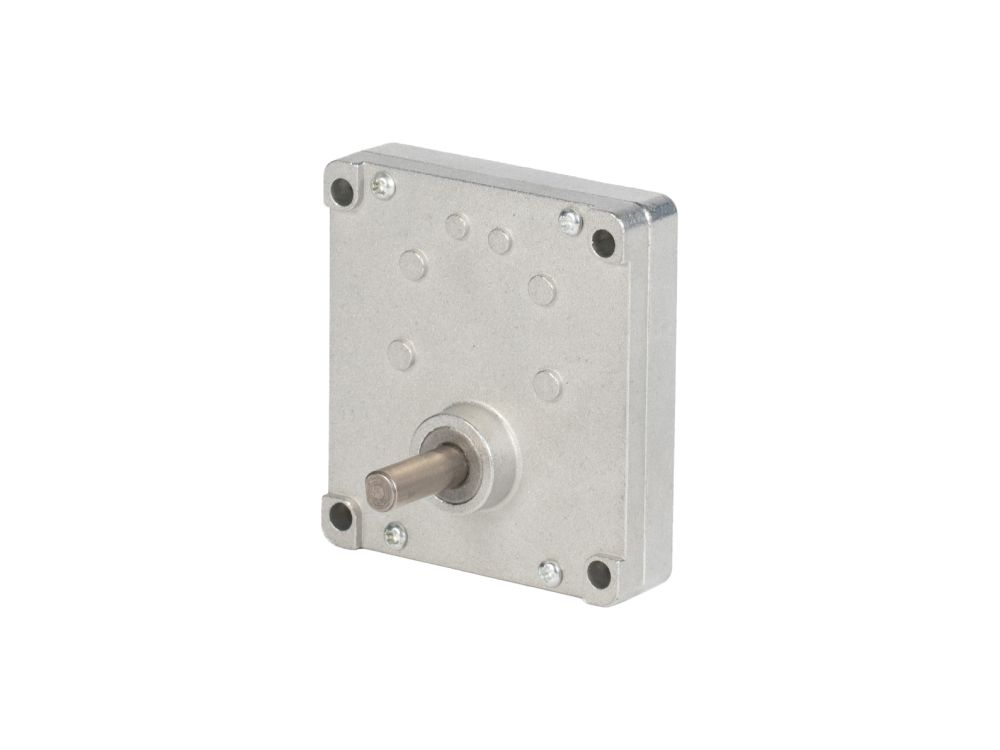

| Gearbox Model | VF |
| Gear Ratio | 36 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 76.2 mm |
| Gearbox Width | 69.8 mm |
| Gearbox Height | 18 mm |
| Max Continuous Torque | 10 kgf·cm |
| Breaking Torque | 30 kgf·cm |
| Gearbox Efficiency | 73 % |
| Gearbox Weight | 270 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 3.17 / φ 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.4 / 0.5 / 0.6 / 0.8 M |
