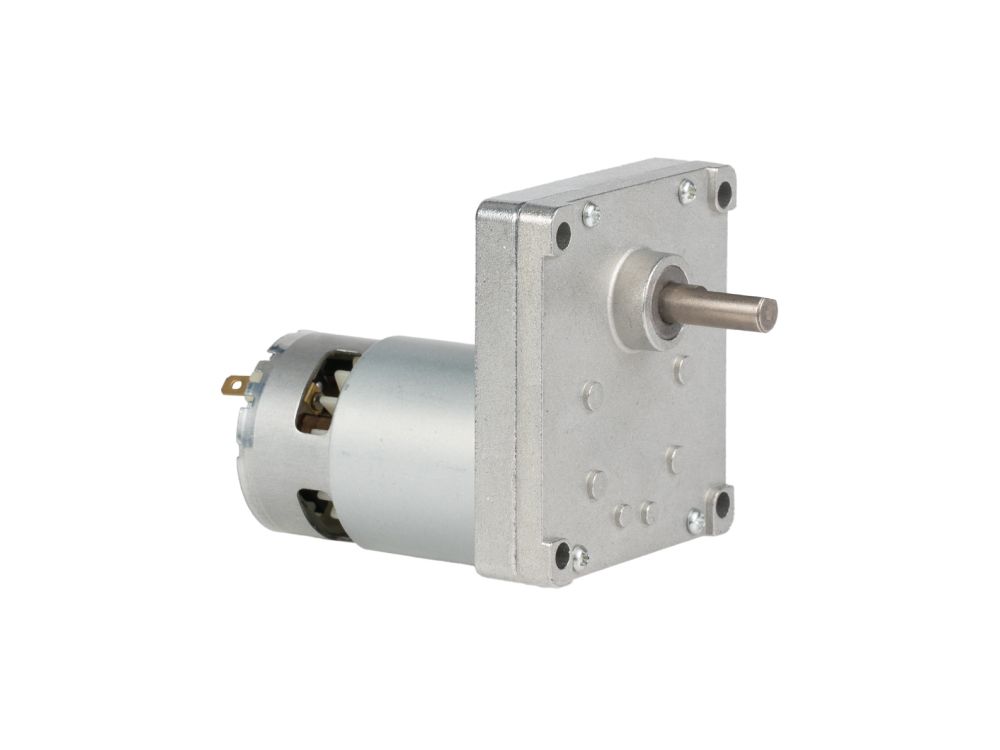

VF775 DC Gearmotors - Flat

USD 15.98 MSRP

Key Data

Gearbox Weight: 617 g
Rated Voltage: 12 V
Rated Speed: 68 rpm
Rated Torque: 9,198 gf·cm
Rated Power: 6427 W

Motor Options6 variants

DC775 12V 3000 RPM

Gearbox Options11 variants

VF 36:1

Request customization

Model & Specification Comparison

Motors 6 options

77512300 DC775 12V 3000 RPM In stock 99

Gearboxes 11 options

VF3600 VF 36:1 In stock 99

Product specifications
Product Model	VF775123000-
Gearbox Weight	617 g
Rated Voltage	12 V
No Load Speed	83.333333 rpm
Rated Speed	68 rpm
No Load Current	420 mA
Rated Current	1,200 mA
Stall Current	6,000 mA
Rated Torque	9,198 gf·cm
Stall Torque	59918.4 gf·cm
Rated Power	6427 W
Max Efficiency	52.560 %
Gearbox Length	142.2 mm
Gear Ratio	36 :1
Number Of Gear Stages	3
Max Continuous Torque	10 gf·cm
Instantaneous Break Torque	30 gf·cm
Backlash	3 °
Operating Temperature Range	-30 ~ 65 C
Working Lifespan	800 hours
Noise Level @ 30cm	53
