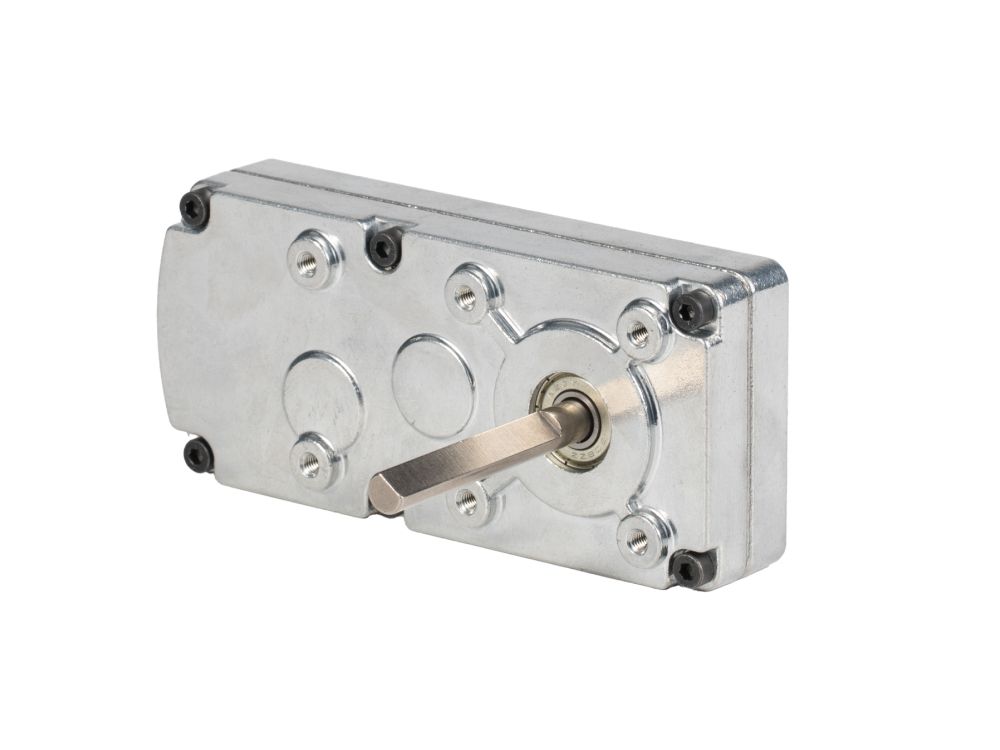

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TA3500 | Spur Gearbox - Flat | TA | 35 :1 | 3 | 133 mm | 60 mm | 25.5 mm | 150 kgf·cm | 500 kgf·cm | 81 % | 420 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
| TA9400 | Spur Gearbox - Flat | TA | 94 :1 | 4 | 133 mm | 60 mm | 25.5 mm | 300 kgf·cm | 1,000 kgf·cm | 73 % | 443 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
| TA1486 | Spur Gearbox - Flat | TA | 148.6 :1 | 4 | 133 mm | 60 mm | 25.5 mm | 300 kgf·cm | 1,000 kgf·cm | 73 % | 443 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
| TA3044 | Spur Gearbox - Flat | TA | 304.4 :1 | 5 | 133 mm | 60 mm | 25.5 mm | 300 kgf·cm | 1,000 kgf·cm | 65 % | 466 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
| TA5683 | Spur Gearbox - Flat | TA | 568.3 :1 | 5 | 133 mm | 60 mm | 25.5 mm | 300 kgf·cm | 1,000 kgf·cm | 65 % | 466 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
| TA7770 | Spur Gearbox - Flat | TA | 777 :1 | 5 | 133 mm | 60 mm | 25.5 mm | 300 kgf·cm | 1,000 kgf·cm | 65 % | 466 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Steel | Spur Gear | Ball bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.8 / 1 / 1.25 M |
Technical Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|
| Gearbox Model | TA |
| Gear Ratio | 35 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 133 mm |
| Gearbox Width | 60 mm |
| Gearbox Height | 25.5 mm |
| Max Continuous Torque | 150 kgf·cm |
| Breaking Torque | 500 kgf·cm |
| Gearbox Efficiency | 81 % |
| Gearbox Weight | 420 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 3.17 / φ 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Steel |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Ball bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.8 / 1 / 1.25 M |
