Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Diameter | Gearbox Length | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SG37A1000 | Spur Gearbox - Round | SG37 | 10 :1 | 2 | 37 mm | 22.5 mm | 1 kgf·cm | 3 kgf·cm | 81 % | 64 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A2000 | Spur Gearbox - Round | SG37 | 20 :1 | 3 | 37 mm | 22.5 mm | 2 kgf·cm | 6 kgf·cm | 73 % | 70 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A3000 | Spur Gearbox - Round | SG37 | 30 :1 | 3 | 37 mm | 22.5 mm | 2 kgf·cm | 6 kgf·cm | 73 % | 70 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A4000 | Spur Gearbox - Round | SG37 | 40 :1 | 4 | 37 mm | 25 mm | 3 kgf·cm | 9 kgf·cm | 66 % | 76 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A6000 | Spur Gearbox - Round | SG37 | 60 :1 | 4 | 37 mm | 25 mm | 4 kgf·cm | 12 kgf·cm | 66 % | 76 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A9000 | Spur Gearbox - Round | SG37 | 90 :1 | 4 | 37 mm | 25 mm | 4 kgf·cm | 12 kgf·cm | 66 % | 76 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A1001 | Spur Gearbox - Round | SG37 | 100 :1 | 4 | 37 mm | 25 mm | 4 kgf·cm | 12 kgf·cm | 66 % | 76 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A1200 | Spur Gearbox - Round | SG37 | 120 :1 | 5 | 37 mm | 27 mm | 6 kgf·cm | 18 kgf·cm | 59 % | 82 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A1800 | Spur Gearbox - Round | SG37 | 180 :1 | 5 | 37 mm | 27 mm | 6 kgf·cm | 18 kgf·cm | 59 % | 82 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A2700 | Spur Gearbox - Round | SG37 | 270 :1 | 5 | 37 mm | 27 mm | 6 kgf·cm | 18 kgf·cm | 59 % | 82 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A3001 | Spur Gearbox - Round | SG37 | 300 :1 | 5 | 37 mm | 27 mm | 6 kgf·cm | 18 kgf·cm | 59 % | 82 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A5400 | Spur Gearbox - Round | SG37 | 540 :1 | 6 | 37 mm | 29 mm | 6 kgf·cm | 18 kgf·cm | 53 % | 88 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A8100 | Spur Gearbox - Round | SG37 | 810 :1 | 6 | 37 mm | 29 mm | 6 kgf·cm | 18 kgf·cm | 53 % | 88 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A1080 | Spur Gearbox - Round | SG37 | 1,080 :1 | 7 | 37 mm | 29 mm | 6 kgf·cm | 18 kgf·cm | 53 % | 88 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A1620 | Spur Gearbox - Round | SG37 | 1,620 :1 | 7 | 37 mm | 29 mm | 6 kgf·cm | 18 kgf·cm | 48 % | 88 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |
| SG37A2430 | Spur Gearbox - Round | SG37 | 2,430 :1 | 7 | 37 mm | 29 mm | 6 kgf·cm | 18 kgf·cm | 48 % | 96 g | 6 mm | φ2 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.5 M |

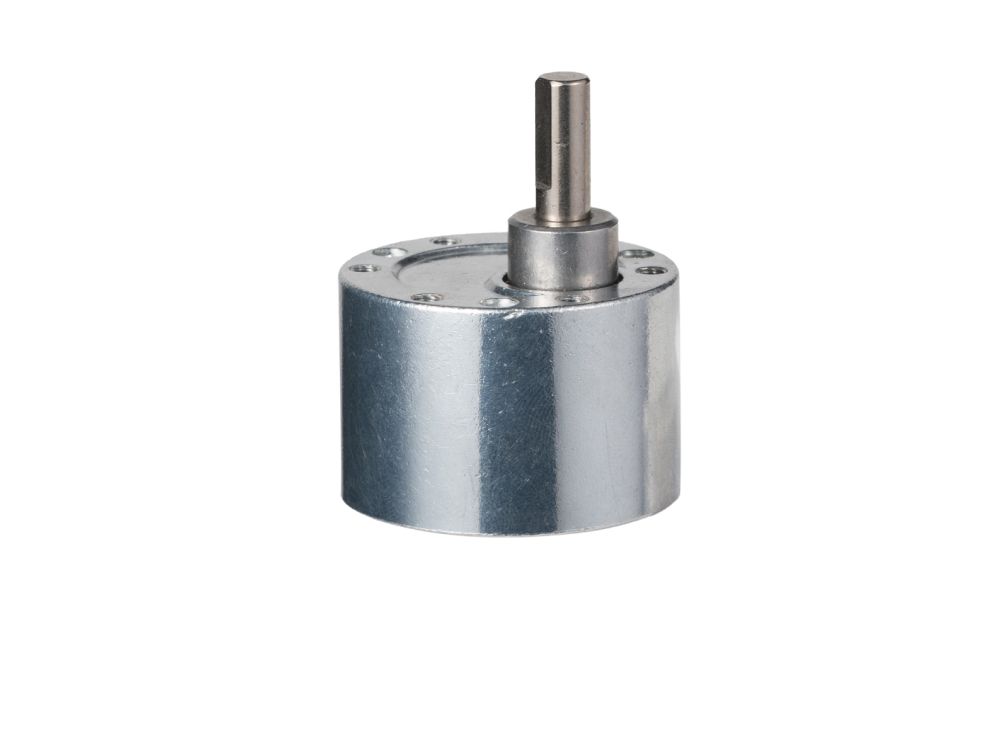

Technical Specifications
| Gearbox Type | Spur Gearbox - Round |
|---|---|
| Gearbox Model | SG37 |
| Gear Ratio | 10 :1 |
| Number Of Gear Stages | 2 |
| Gearbox Diameter | 37 mm |
| Gearbox Length | 22.5 mm |
| Max Continuous Torque | 1 kgf·cm |
| Breaking Torque | 3 kgf·cm |
| Gearbox Efficiency | 81 % |
| Gearbox Weight | 64 g |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | φ2 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy (Die casting) |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.05 mm |
| Backlash | 2 ° |
| Gear Module | 0.5 M |
