Gearboxes
Planetary Gearboxes
PG32

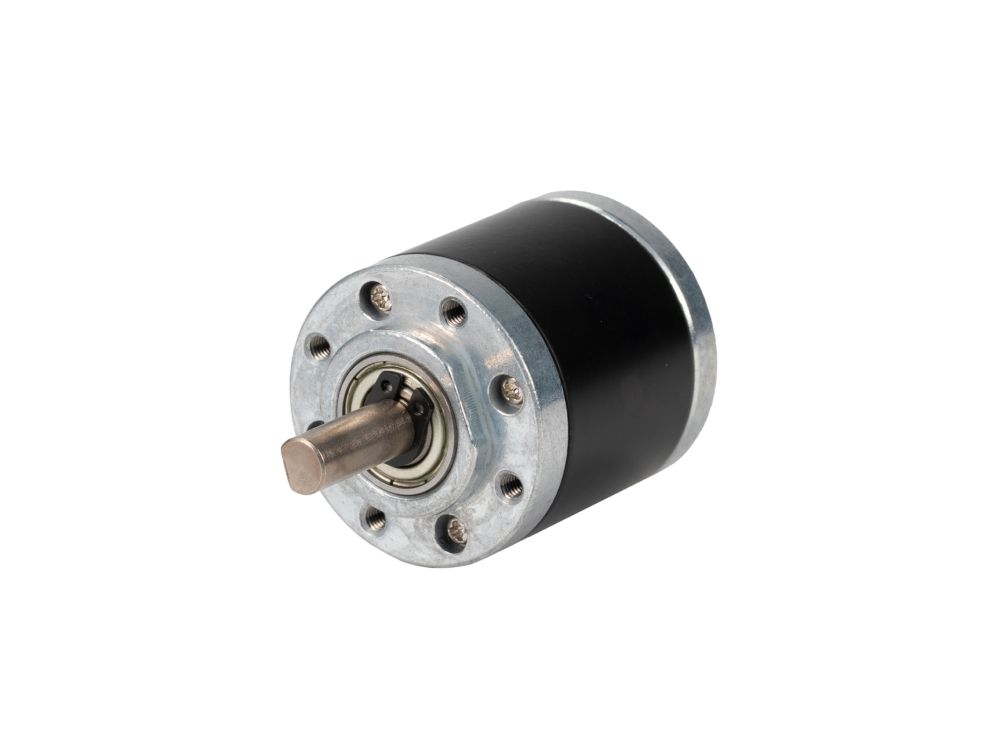

PG32 Planetary Gearbox
$15.99
MSRP
Key Data
Gear Ratio 5 :1
Max Continuous Torque 100 gf·cm
Breaking Torque 300 gf·cm
Gearbox Efficiency 90 %
Gearbox Weight 96 g
Gearbox Options12 variants
PG32 5:1 Compatible Gear Motors1 products
Explore compatible models
Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Gearbox Type Gearbox Model Gear Ratio Number Of Gear Stages Gearbox Diameter Gearbox Length Max Continuous Torque Breaking Torque Gearbox Efficiency Gearbox Weight Shaft Diameter Pinion Hole Diameter Operating Temperature Range Gearbox Housing Material Gear Material Gear Design Output Shaft Bearing Lubricant In Gearbox Axial Play Radial Play Backlash Gear Module
PG325000 Planetary Gear Motor PG32-5K 5 :1 1 32 mm 25.9 mm 100 gf·cm 300 gf·cm 90 % 96 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG321850 Planetary Gear Motor PG32-18.5K 18.5 :1 2 32 mm 33.2 mm 50 gf·cm 150 gf·cm 81 % 118 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG322600 Planetary Gear Motor PG32-26K 26 :1 2 32 mm 33.2 mm 50 gf·cm 150 gf·cm 81 % 118 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG326900 Planetary Gear Motor PG32-69K 69 :1 3 32 mm 39.5 mm 100 gf·cm 300 gf·cm 72 % 140 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG329600 Planetary Gear Motor PG32-96K 96 :1 3 32 mm 39.5 mm 100 gf·cm 300 gf·cm 72 % 140 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG321340 Planetary Gear Motor PG32-134K 134 :1 3 32 mm 39.5 mm 100 gf·cm 300 gf·cm 72 % 140 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG322550 Planetary Gear Motor PG32-255K 255 :1 4 32 mm 45.8 mm 100 gf·cm 300 gf·cm 60 % 162 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG323560 Planetary Gear Motor PG32-356K 356 :1 4 32 mm 45.8 mm 100 gf·cm 300 gf·cm 60 % 162 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG326960 Planetary Gear Motor PG32-696K 696 :1 4 32 mm 45.8 mm 100 gf·cm 300 gf·cm 60 % 162 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG329430 Planetary Gear Motor PG32-943K 943 :1 5 32 mm 52.1 mm 100 gf·cm 300 gf·cm 50 % 196 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG321319 Planetary Gear Motor PG32-1319K 1,319 :1 5 32 mm 52.1 mm 100 gf·cm 300 gf·cm 50 % 196 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M PG321844 Planetary Gear Motor PG32-1844K 1,844 :1 5 32 mm 52.1 mm 100 gf·cm 300 gf·cm 50 % 196 g 6 mm 2.28 / 3.14 mm -30 ~ 65 C Powder Metallurgy (Fe) Powder Metallurgy (Fe) / Plastics Spur Gear Ball Bearing Graphene oil ≤ 0.2 mm ≤ 0.1 mm ≤ 1.5 ° 0.5 M
Technical Specifications Technical Specifications Gearbox Type Planetary Gear Motor Gearbox Model PG32-5K Gear Ratio 5 :1 Number Of Gear Stages 1 Gearbox Diameter 32 mm Gearbox Length 25.9 mm Max Continuous Torque 100 gf·cm Breaking Torque 300 gf·cm Gearbox Efficiency 90 % Gearbox Weight 96 g Shaft Diameter 6 mm Pinion Hole Diameter 2.28 / 3.14 mm Operating Temperature Range -30 ~ 65 C Gearbox Housing Material Powder Metallurgy (Fe) Gear Material Powder Metallurgy (Fe) / Plastics Gear Design Spur Gear Output Shaft Bearing Ball Bearing Lubricant In Gearbox Graphene oil Axial Play ≤ 0.2 mm Radial Play ≤ 0.1 mm Backlash ≤ 1.5 ° Gear Module 0.5 M
