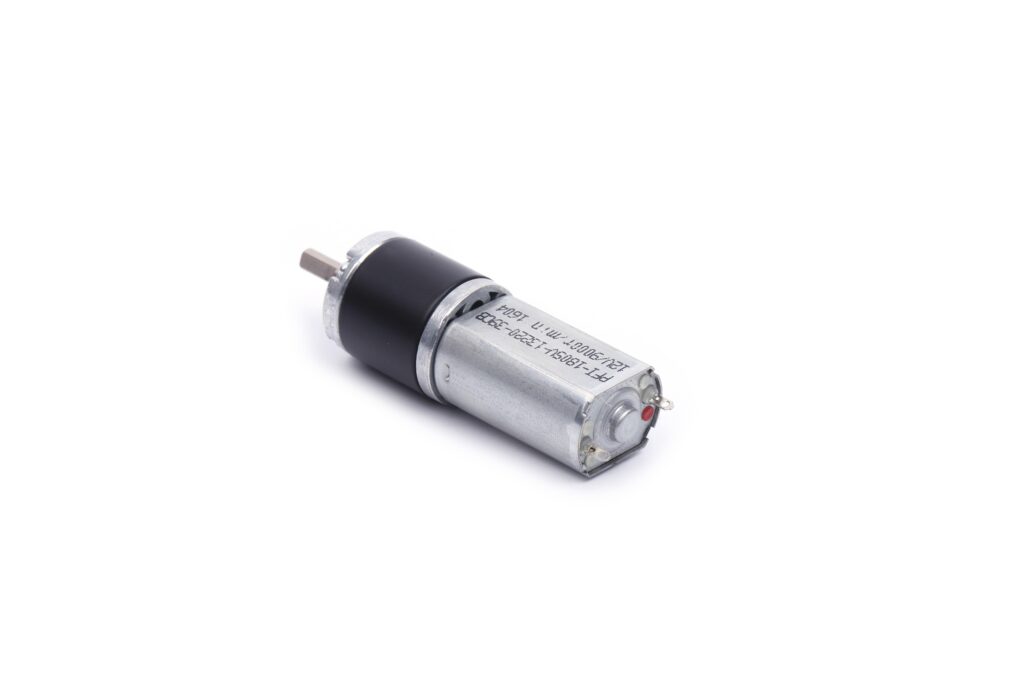

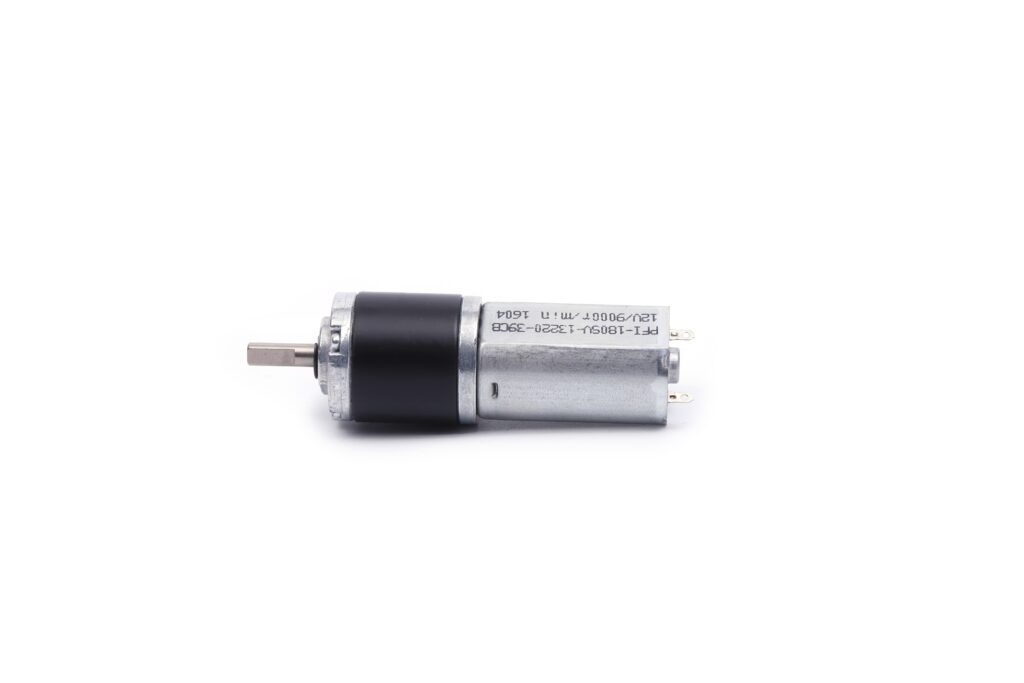

PG22-180 24V DC Planetary Gear Motor

  • Size:22 mm
  • Rated Power:up to 10W
  • Rated Voltage:12V-24 V
  • Rated Speed:3-820rpm

SIZE DRAWING

TECHNICAL DATA

ModelVoltageRated RpmRated CurrentRated TorquePowerStall TorqueTest Report
PG22180129000-64K12V1100.277A0.11N.m1.273W0.552N.mClick here
PG221801225000-42.8K12V426.11.934A0.159N.m7.119W0.659N.mClick here
PG221801215000-16K12V672.81.09A0.061N.m4.309W0.25N.mClick here
PG22180249000-2036K24V2.70.106A1.07N.m0.311W3.216Click here

Custom Accessories

Motor Type
Gearbox Design
Gears Material
Custom Shaft
plastic gearsPlastic Gears
hobbed gearsHobbed Gears
powder metallurgy gearsPowder Metallurgy Gear
Round shaftRound Shaft
Pin shaftD Shaft
Customized Shaft
