Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Diameter | Gearbox Length | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG164000 | Planetary Gear Motor | PG16-4K | 4 :1 | 1 | 16 mm | 13.7 mm | 1 kgf·cm | 3 kgf·cm | 90 % | 14 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG164750 | Planetary Gear Motor | PG16-4.75K | 4.75 :1 | 1 | 16 mm | 13.7 mm | 1 kgf·cm | 3 kgf·cm | 90 % | 14 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG161230 | Planetary Gear Motor | PG16-12.3K | 12.3 :1 | 2 | 16 mm | 17.3 mm | 1.5 kgf·cm | 4.5 kgf·cm | 81 % | 17 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG161600 | Planetary Gear Motor | PG16-16K | 16 :1 | 2 | 16 mm | 17.3 mm | 1.5 kgf·cm | 4.5 kgf·cm | 81 % | 17 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG161900 | Planetary Gear Motor | PG16-19K | 19 :1 | 2 | 16 mm | 17.3 mm | 1.5 kgf·cm | 4.5 kgf·cm | 81 % | 17 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG164280 | Planetary Gear Motor | PG16-42.8K | 42.8 :1 | 3 | 16 mm | 20.9 mm | 4 kgf·cm | 12 kgf·cm | 72 % | 21 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG166400 | Planetary Gear Motor | PG16-64K | 64 :1 | 3 | 16 mm | 20.9 mm | 4 kgf·cm | 12 kgf·cm | 72 % | 21 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG167600 | Planetary Gear Motor | PG16-76K | 76 :1 | 3 | 16 mm | 20.9 mm | 4 kgf·cm | 12 kgf·cm | 72 % | 21 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG161500 | Planetary Gear Motor | PG16-150K | 150 :1 | 4 | 16 mm | 24.5 mm | 4 kgf·cm | 12 kgf·cm | 65 % | 25 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG162560 | Planetary Gear Motor | PG16-256K | 256 :1 | 4 | 16 mm | 24.5 mm | 4 kgf·cm | 12 kgf·cm | 65 % | 25 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG167120 | Planetary Gear Motor | PG16-712K | 712 :1 | 5 | 16 mm | 28.1 mm | 4 kgf·cm | 12 kgf·cm | 50 % | 27 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |
| PG161024 | Planetary Gear Motor | PG16-1024K | 1,024 :1 | 5 | 16 mm | 28.1 mm | 4 kgf·cm | 12 kgf·cm | 50 % | 27 g | 3 mm | 1.48 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Dual Ball bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.3 M |

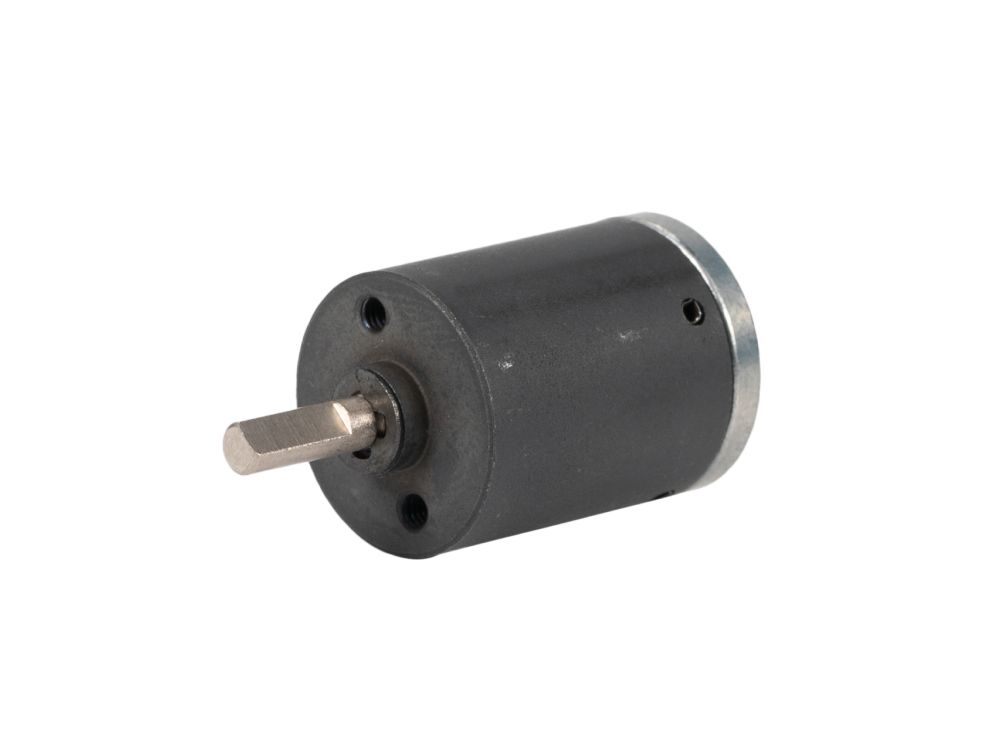

Technical Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG16-4K |
| Gear Ratio | 4 :1 |
| Number Of Gear Stages | 1 |
| Gearbox Diameter | 16 mm |
| Gearbox Length | 13.7 mm |
| Max Continuous Torque | 1 kgf·cm |
| Breaking Torque | 3 kgf·cm |
| Gearbox Efficiency | 90 % |
| Gearbox Weight | 14 g |
| Shaft Diameter | 3 mm |
| Pinion Hole Diameter | 1.48 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Dual Ball bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.3 M |
