Technical Specifications

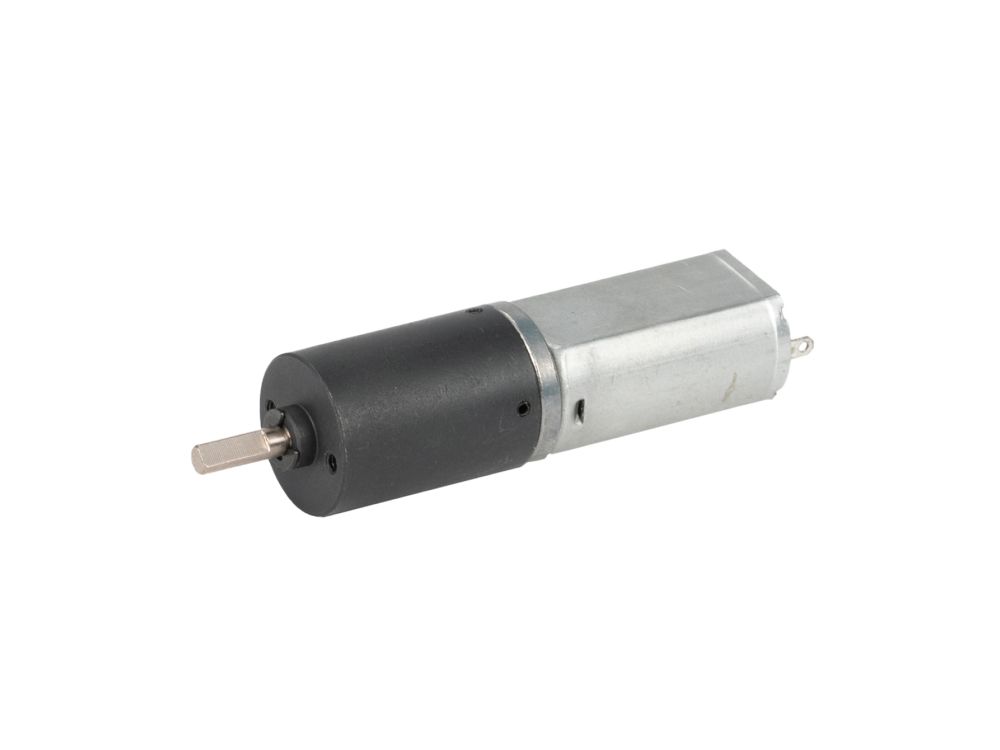

| Product Model | PG16050129000-4K |
|---|---|
| Gearbox Weight | 30 g |
| Rated Voltage | 12 V |
| No Load Speed | 2,250 rpm |
| Rated Speed | 1,750 rpm |
| No Load Current | 45 mA |
| Rated Current | 140 mA |
| Stall Current | 500 mA |
| Rated Torque | 29 gf·cm |
| Stall Torque | 162 gf·cm |
| Rated Power | 0.52 W |
| Max Efficiency | 67.500 % |
| Motor Diameter | 16 mm |
| Gearbox Length | 40.6 mm |
| Gear Ratio | 4 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 1 kgf·cm |
| Instantaneous Break Torque | 3 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 150 hours |
