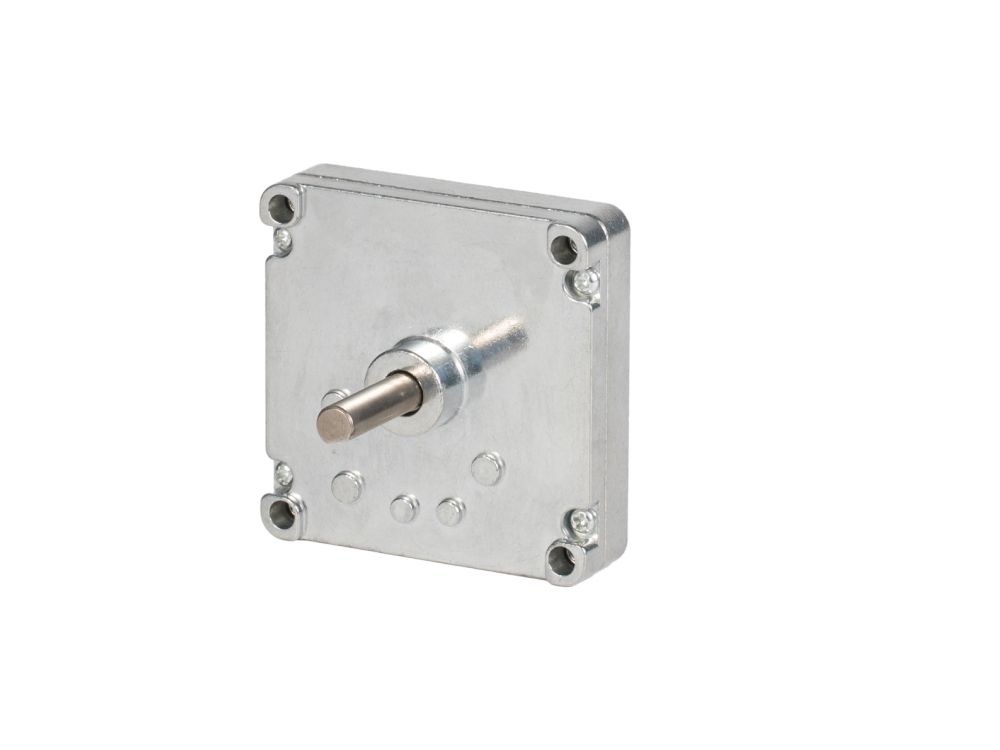

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MG1300 | Spur Gearbox - Flat | MG | 13 :1 | 3 | 70 mm | 70 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 264 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG1750 | Spur Gearbox - Flat | MG | 17.5 :1 | 3 | 70 mm | 70 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 264 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG2500 | Spur Gearbox - Flat | MG | 25 :1 | 3 | 70 mm | 70 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 264 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG3900 | Spur Gearbox - Flat | MG | 39 :1 | 3 | 70 mm | 70 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 264 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG5500 | Spur Gearbox - Flat | MG | 55 :1 | 3 | 70 mm | 70 mm | 18 mm | 10 kgf·cm | 30 kgf·cm | 73 % | 264 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG9000 | Spur Gearbox - Flat | MG | 90 :1 | 4 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG1280 | Spur Gearbox - Flat | MG | 128 :1 | 4 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG1700 | Spur Gearbox - Flat | MG | 170 :1 | 4 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG1900 | Spur Gearbox - Flat | MG | 190 :1 | 4 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG2390 | Spur Gearbox - Flat | MG | 239 :1 | 4 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 65 % | 270 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG3310 | Spur Gearbox - Flat | MG | 331 :1 | 5 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 278 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG4780 | Spur Gearbox - Flat | MG | 478 :1 | 5 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 278 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
| MG7180 | Spur Gearbox - Flat | MG | 718 :1 | 5 | 70 mm | 70 mm | 18 mm | 30 kgf·cm | 90 kgf·cm | 59 % | 278 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.4 / 0.5 / 0.6 / 0.8 M |
Technical Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|
| Gearbox Model | MG |
| Gear Ratio | 13 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 70 mm |
| Gearbox Width | 70 mm |
| Gearbox Height | 18 mm |
| Max Continuous Torque | 10 kgf·cm |
| Breaking Torque | 30 kgf·cm |
| Gearbox Efficiency | 73 % |
| Gearbox Weight | 264 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 3.17 / φ 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.4 / 0.5 / 0.6 / 0.8 M |
