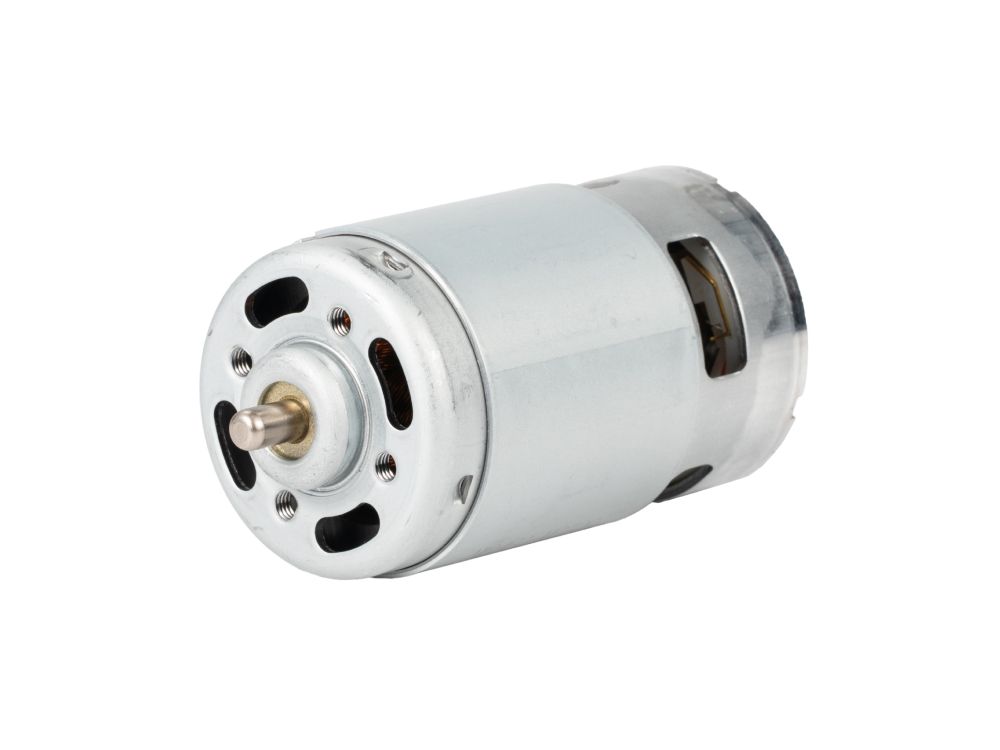

DC997 Brushed DC Motor

DC997 Brushed DC Motor

$15.99MSRP

Key Data

Rated Voltage
12 V
Rated Torque
1,168 gf·cm
Rated Speed
4,180 rpm
Rated Current
5,400 mA
Rated Power
48.80 W
Electrical Options4 variants
DC997 12V 4500 RPM

Compatible Gear Motors1 products

Explore compatible models
PG56997 Planetary Gear Motor2 components · 56 combinations
Request customization

Model & Selection

Dimensional Drawing

Model & Specification Comparison

SKUMotor ModelMotor TypeRated VoltageNo Load SpeedRated SpeedNo Load CurrentRated CurrentStall CurrentRated TorqueStall TorqueRated PowerMax EfficiencyMotor DiameterMotor LengthMotor WeightShaft DiameterShaft ConfigurationConnectorWorking LifespanOperating Temperature RangeHousing MaterialDirection Of RotationEnameled Wire MaterialMagnet MaterialCarbon Brush MaterialInsulation ClassNumber Of Pole PairsGearbox
99712450DC997-124500Brushed DC Motor12 V4,500 rpm4,180 rpm1,350 mA5,400 mA48,100 mA1,168 gf·cm11,500 gf·cm48.80 W72 %54.5 mm85 mm675 g6.35 mmSingle/Dual21,000 hours-30 ~ 65 CElectrolytic zinc coated steelCW/CCWEnameled copper wireFerriteMetal graphite brushUEW2PG56
99712600DC997-126000Brushed DC Motor12 V6,000 rpm5,400 rpm1,850 mA7,500 mA67,500 mA1,200 gf·cm12,000 gf·cm64.80 W72 %54.5 mm85 mm675 g6.35 mmSingle/Dual21,000 hours-30 ~ 65 CElectrolytic zinc coated steelCW/CCWEnameled copper wireFerriteMetal graphite brushUEW2PG56
99724450DC997-244500Brushed DC Motor24 V4,500 rpm4,200 rpm850 mA2,800 mA25,900 mA1,197 gf·cm12,350 gf·cm50.20 W72 %54.5 mm85 mm675 g6.35 mmSingle/Dual21,000 hours-30 ~ 65 CElectrolytic zinc coated steelCW/CCWEnameled copper wireFerriteMetal graphite brushUEW2PG56
99724600DC997-246000Brushed DC Motor24 V6,000 rpm5,165 rpm1,250 mA4,960 mA34,000 mA1,699 gf·cm13,100 gf·cm86 W72 %54.5 mm85 mm675 g6.35 mmSingle/Dual21,000 hours-30 ~ 65 CElectrolytic zinc coated steelCW/CCWEnameled copper wireFerriteMetal graphite brushUEW2PG56

Technical Specifications

Motor ModelDC997-124500
Motor TypeBrushed DC Motor
Rated Voltage12 V
No Load Speed4,500 rpm
Rated Speed4,180 rpm
No Load Current1,350 mA
Rated Current5,400 mA
Stall Current48,100 mA
Rated Torque1,168 gf·cm
Stall Torque11,500 gf·cm
Rated Power48.80 W
Max Efficiency72 %
Motor Diameter54.5 mm
Motor Length85 mm
Motor Weight675 g
Shaft Diameter6.35 mm
Shaft ConfigurationSingle/Dual
Connector2
Working Lifespan1,000 hours
Operating Temperature Range-30 ~ 65 C
Housing MaterialElectrolytic zinc coated steel
Direction Of RotationCW/CCW
Enameled Wire MaterialEnameled copper wire
Magnet MaterialFerrite
Carbon Brush MaterialMetal graphite brush
Insulation ClassUEW
Number Of Pole Pairs2
GearboxPG56
