Technical Specifications

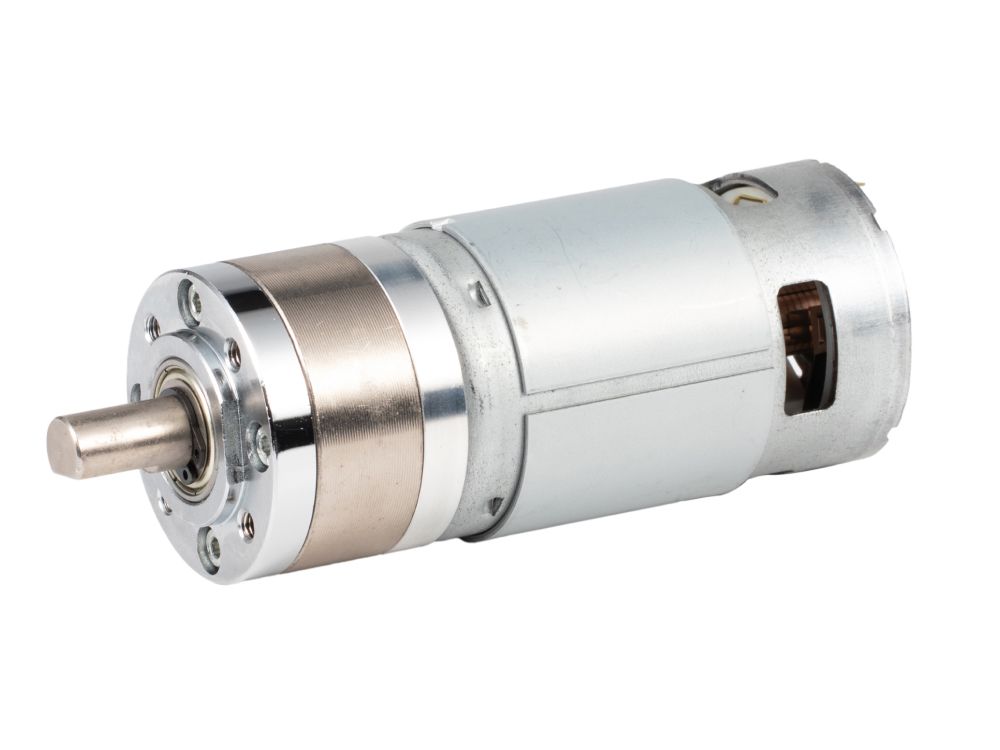

| Product Model | PG56997124500-3.7K |
|---|---|
| Gearbox Weight | 1,106 g |
| Rated Voltage | 12 V |
| No Load Speed | 1216.22 rpm |
| Rated Speed | 1130 rpm |
| No Load Current | 1,350 mA |
| Rated Current | 5,400 mA |
| Stall Current | 48,100 mA |
| Rated Torque | 3889 gf·cm |
| Stall Torque | 38,295 gf·cm |
| Rated Power | 45.13 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 56 mm |
| Gearbox Length | 122.5 mm |
| Gear Ratio | 3.7 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 100 kgf·cm |
| Instantaneous Break Torque | 300 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 1,000 hours |
