Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Connector | Working Lifespan | Operating Temperature Range | Housing Material | Direction Of Rotation | Enameled Wire Material | Magnet Material | Carbon Brush Material | Insulation Class | Number Of Pole Pairs | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 37012450 | DC370-124500 | Brushed DC Motor | 12 V | 4,500 rpm | 3,900 rpm | 33 mA | 160 mA | 1,000 mA | 30 gf·cm | 160 gf·cm | 1.15 W | 75 % | 24.4 mm | 30.8 mm | 49 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG25/SG25/WGM370 |
| 37012600 | DC370-126000 | Brushed DC Motor | 12 V | 6,000 rpm | 5,200 rpm | 40 mA | 260 mA | 1,500 mA | 28 gf·cm | 180 gf·cm | 1.60 W | 75 % | 24.4 mm | 30.8 mm | 49 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG25/SG25/WGM370 |
| 37024450 | DC370-244500 | Brushed DC Motor | 24 V | 4,500 rpm | 3,900 rpm | 15 mA | 60 mA | 360 mA | 20 gf·cm | 75 gf·cm | 0.86 W | 75 % | 24.4 mm | 30.8 mm | 49 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG25/SG25/WGM370 |
| 37024600 | DC370-246000 | Brushed DC Motor | 24 V | 6,000 rpm | 5,550 rpm | 30 mA | 120 mA | 1,500 mA | 28 gf·cm | 170 gf·cm | 1.54 W | 75 % | 24.4 mm | 30.8 mm | 49 g | 2 mm | Single/Dual | 2 | 300 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG25/SG25/WGM370 |
Technical Specifications

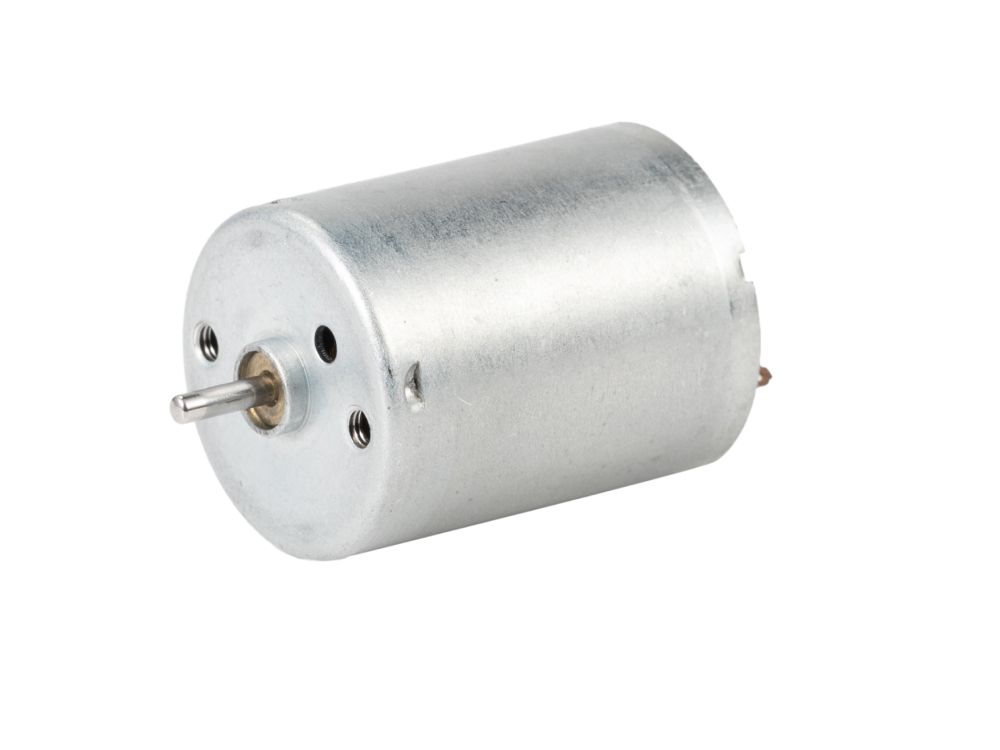

| Motor Model | DC370-124500 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 V |
| No Load Speed | 4,500 rpm |
| Rated Speed | 3,900 rpm |
| No Load Current | 33 mA |
| Rated Current | 160 mA |
| Stall Current | 1,000 mA |
| Rated Torque | 30 gf·cm |
| Stall Torque | 160 gf·cm |
| Rated Power | 1.15 W |
| Max Efficiency | 75 % |
| Motor Diameter | 24.4 mm |
| Motor Length | 30.8 mm |
| Motor Weight | 49 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 300 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG25/SG25/WGM370 |
