Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Connector | Working Lifespan | Operating Temperature Range | Housing Material | Direction Of Rotation | Enameled Wire Material | Magnet Material | Carbon Brush Material | Insulation Class | Number Of Pole Pairs | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 18012900 | DC180-129000 | Brushed DC Motor | 12 V | 9,000 rpm | 7,200 rpm | 50 mA | 300 mA | 950 mA | 24 gf·cm | 120 gf·cm | 1.80 W | 72 % | 20.4 mm | 32.1 mm | 31 g | 2 mm | Single/Dual | 2 | 150 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG22 |
| 18012150 | DC180-1215000 | Brushed DC Motor | 12 V | 15,000 rpm | 12,494 rpm | 135 mA | 600 mA | 3,000 mA | 35 gf·cm | 215 gf·cm | 4.50 W | 71 % | 20.4 mm | 32.1 mm | 31 g | 2 mm | Single/Dual | 2 | 150 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG22 |
| 18024900 | DC180-249000 | Brushed DC Motor | 24 V | 9,000 rpm | 7,416 rpm | 25 mA | 110 mA | 550 mA | 23 gf·cm | 130 gf·cm | 1.74 W | 71 % | 20.4 mm | 32.1 mm | 31 g | 2 mm | Single/Dual | 2 | 150 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG22 |
| 18024150 | DC180-2415000 | Brushed DC Motor | 24 V | 15,000 rpm | 12,600 rpm | 55 mA | 290 mA | 1,600 mA | 36 gf·cm | 220 gf·cm | 4.45 W | 71 % | 20.4 mm | 32.1 mm | 31 g | 2 mm | Single/Dual | 2 | 150 hours | -30 ~ 65 C | Electrolytic zinc coated steel | CW/CCW | Enameled copper wire | Ferrite | Metal graphite brush | UEW | 2 | PG22 |
Technical Specifications

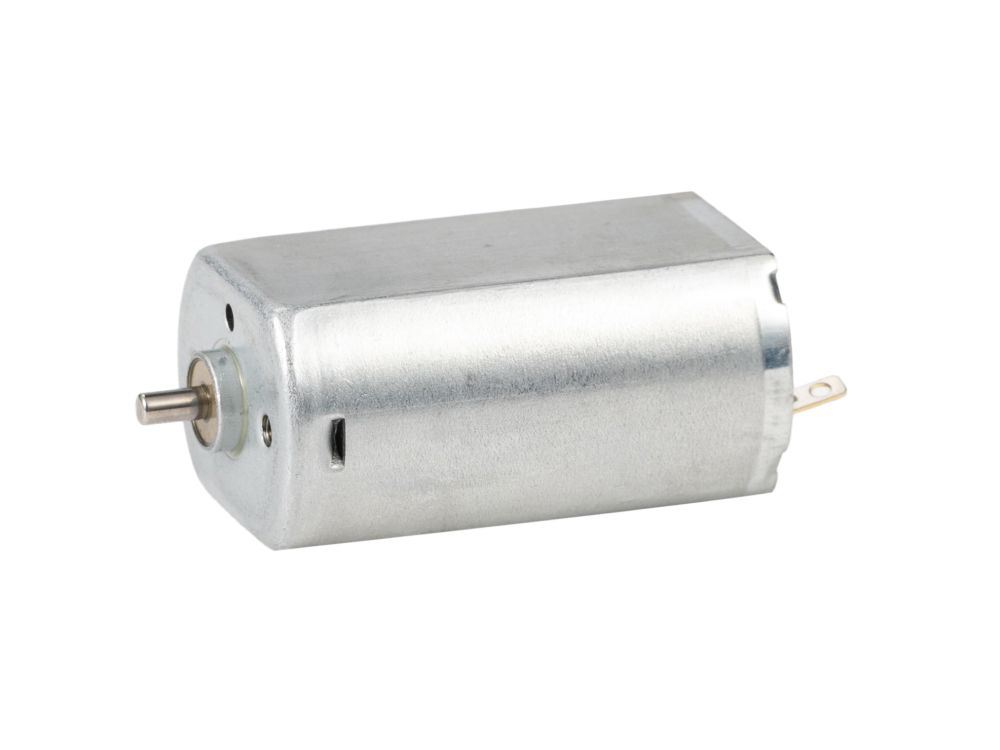

| Motor Model | DC180-129000 |
|---|---|
| Motor Type | Brushed DC Motor |
| Rated Voltage | 12 V |
| No Load Speed | 9,000 rpm |
| Rated Speed | 7,200 rpm |
| No Load Current | 50 mA |
| Rated Current | 300 mA |
| Stall Current | 950 mA |
| Rated Torque | 24 gf·cm |
| Stall Torque | 120 gf·cm |
| Rated Power | 1.80 W |
| Max Efficiency | 72 % |
| Motor Diameter | 20.4 mm |
| Motor Length | 32.1 mm |
| Motor Weight | 31 g |
| Shaft Diameter | 2 mm |
| Shaft Configuration | Single/Dual |
| Connector | 2 |
| Working Lifespan | 150 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | CW/CCW |
| Enameled Wire Material | Enameled copper wire |
| Magnet Material | Ferrite |
| Carbon Brush Material | Metal graphite brush |
| Insulation Class | UEW |
| Number Of Pole Pairs | 2 |
| Gearbox | PG22 |
