Technical Specifications

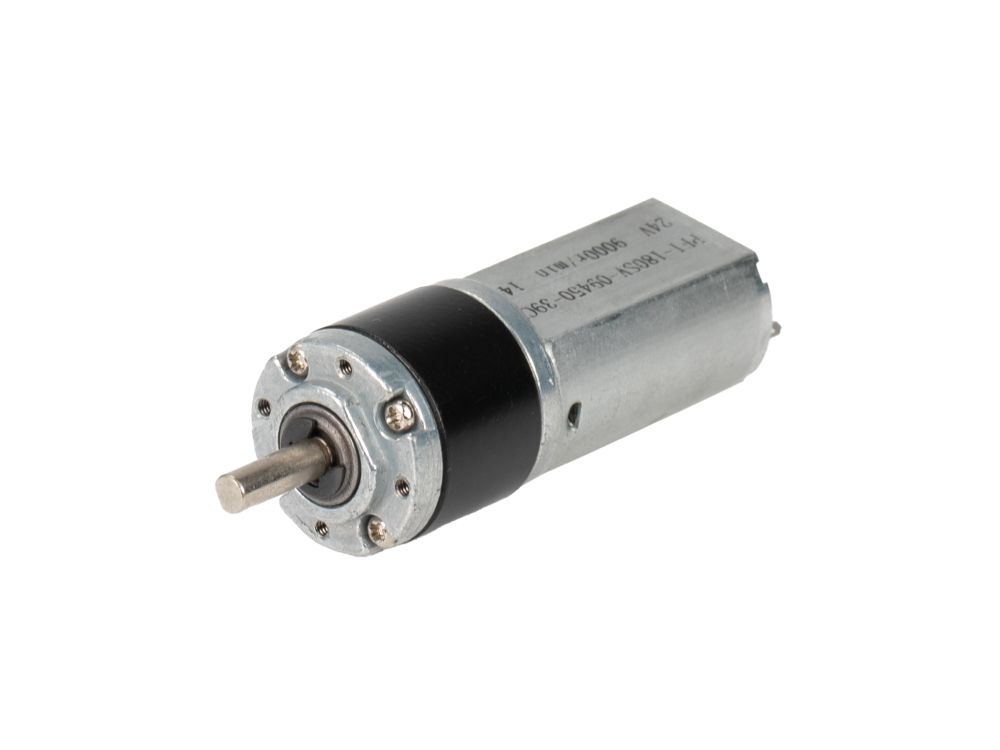

| Product Model | PG22180129000-4.4K |
|---|---|
| Gearbox Weight | 61 g |
| Rated Voltage | 12 V |
| No Load Speed | 2045.45 rpm |
| Rated Speed | 1636 rpm |
| No Load Current | 50 mA |
| Rated Current | 300 mA |
| Stall Current | 950 mA |
| Rated Torque | 95 gf·cm |
| Stall Torque | 475.2 gf·cm |
| Rated Power | 1.60 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 22 mm |
| Gearbox Length | 46 mm |
| Gear Ratio | 4.4 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 3 kgf·cm |
| Instantaneous Break Torque | 9 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 150 hours |
