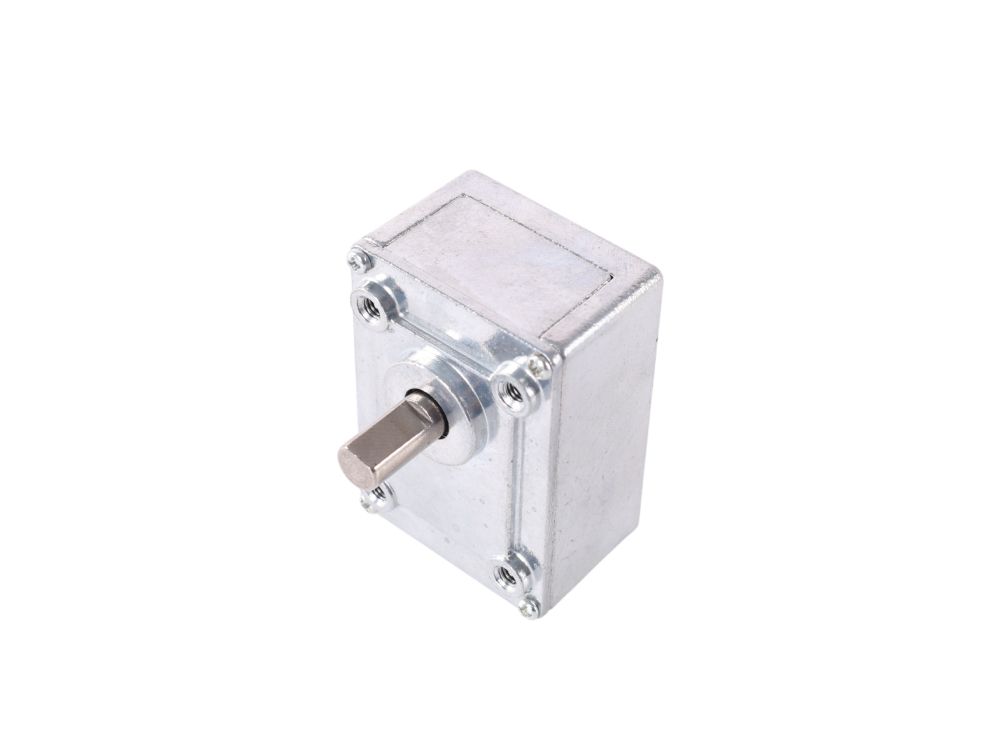

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Worm Material | Number of Threads（Z） | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WGM4058400 | Worm Gearbox | WGM4058 | 40 :1 | 3 | 58 mm | 40 mm | 36 mm | 10 kgf·cm | 30 kgf·cm | 70 % | 180 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM4058860 | Worm Gearbox | WGM4058 | 86 :1 | 4 | 58 mm | 40 mm | 36 mm | 30 kgf·cm | 90 kgf·cm | 60 % | 180 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM4058137 | Worm Gearbox | WGM4058 | 137 :1 | 4 | 58 mm | 40 mm | 36 mm | 30 kgf·cm | 90 kgf·cm | 60 % | 182 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM4058255 | Worm Gearbox | WGM4058 | 255 :1 | 4 | 58 mm | 40 mm | 36 mm | 30 kgf·cm | 90 kgf·cm | 50 % | 182 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM4058422 | Worm Gearbox | WGM4058 | 422 :1 | 4 | 58 mm | 40 mm | 36 mm | 30 kgf·cm | 90 kgf·cm | 50 % | 185 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM4058686 | Worm Gearbox | WGM4058 | 686 :1 | 4 | 58 mm | 40 mm | 36 mm | 30 kgf·cm | 90 kgf·cm | 50 % | 185 g | 8 mm | 3.17 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
Technical Specifications
| Gearbox Type | Worm Gearbox |
|---|---|
| Gearbox Model | WGM4058 |
| Gear Ratio | 40 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 58 mm |
| Gearbox Width | 40 mm |
| Gearbox Height | 36 mm |
| Max Continuous Torque | 10 kgf·cm |
| Breaking Torque | 30 kgf·cm |
| Gearbox Efficiency | 70 % |
| Gearbox Weight | 180 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | 3.17 mm |
| Operating Temperature Range | -30~65 C |
| Gearbox Housing Material | Zinc Alloy (Die casting) |
| Worm Material | Brass / Plastic / Steel |
| Number of Threads（Z） | 1 |
| Gear Material | Yes |
| Gear Design | Powder Metallurgy (Fe) / Plastics |
| Output Shaft Bearing | Helical / Spur |
| Lubricant In Gearbox | Sleeve Bearing |
| Axial Play | Graphene oil mm |
| Radial Play | 0.2 mm |
| Backlash | 0.1 ° |
| Gear Module | 2 M |
