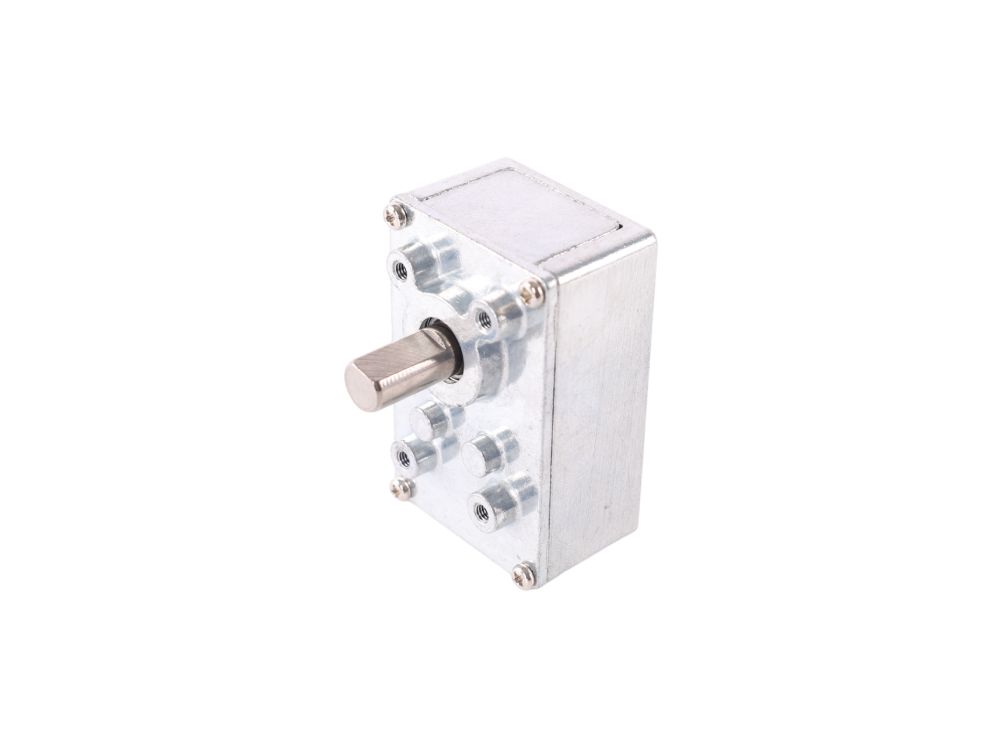

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Worm Material | Number of Threads（Z） | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WGM3701230 | Worm Gearbox | WGM370 | 123 :1 | 3 | 46 mm | 32 mm | 25 mm | 2 kgf·cm | 6 kgf·cm | 70 % | 102 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM3702760 | Worm Gearbox | WGM370 | 276 :1 | 3 | 46 mm | 32 mm | 25 mm | 2 kgf·cm | 6 kgf·cm | 70 % | 102 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM3705520 | Worm Gearbox | WGM370 | 552 :1 | 4 | 46 mm | 32 mm | 25 mm | 5 kgf·cm | 15 kgf·cm | 60 % | 105 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM3708280 | Worm Gearbox | WGM370 | 828 :1 | 4 | 46 mm | 32 mm | 25 mm | 5 kgf·cm | 15 kgf·cm | 60 % | 105 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM3701656 | Worm Gearbox | WGM370 | 1,656 :1 | 5 | 46 mm | 32 mm | 25 mm | 10 kgf·cm | 30 kgf·cm | 50 % | 107 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
| WGM3702484 | Worm Gearbox | WGM370 | 2,484 :1 | 5 | 46 mm | 32 mm | 25 mm | 10 kgf·cm | 30 kgf·cm | 50 % | 107 g | 6 mm | 2 mm | -30~65 C | Zinc Alloy (Die casting) | Brass / Plastic / Steel | 1 | Yes | Powder Metallurgy (Fe) / Plastics | Helical / Spur | Sleeve Bearing | Graphene oil mm | 0.2 mm | 0.1 ° | 2 M |
Technical Specifications
| Gearbox Type | Worm Gearbox |
|---|---|
| Gearbox Model | WGM370 |
| Gear Ratio | 123 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 46 mm |
| Gearbox Width | 32 mm |
| Gearbox Height | 25 mm |
| Max Continuous Torque | 2 kgf·cm |
| Breaking Torque | 6 kgf·cm |
| Gearbox Efficiency | 70 % |
| Gearbox Weight | 102 g |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | 2 mm |
| Operating Temperature Range | -30~65 C |
| Gearbox Housing Material | Zinc Alloy (Die casting) |
| Worm Material | Brass / Plastic / Steel |
| Number of Threads（Z） | 1 |
| Gear Material | Yes |
| Gear Design | Powder Metallurgy (Fe) / Plastics |
| Output Shaft Bearing | Helical / Spur |
| Lubricant In Gearbox | Sleeve Bearing |
| Axial Play | Graphene oil mm |
| Radial Play | 0.2 mm |
| Backlash | 0.1 ° |
| Gear Module | 2 M |
