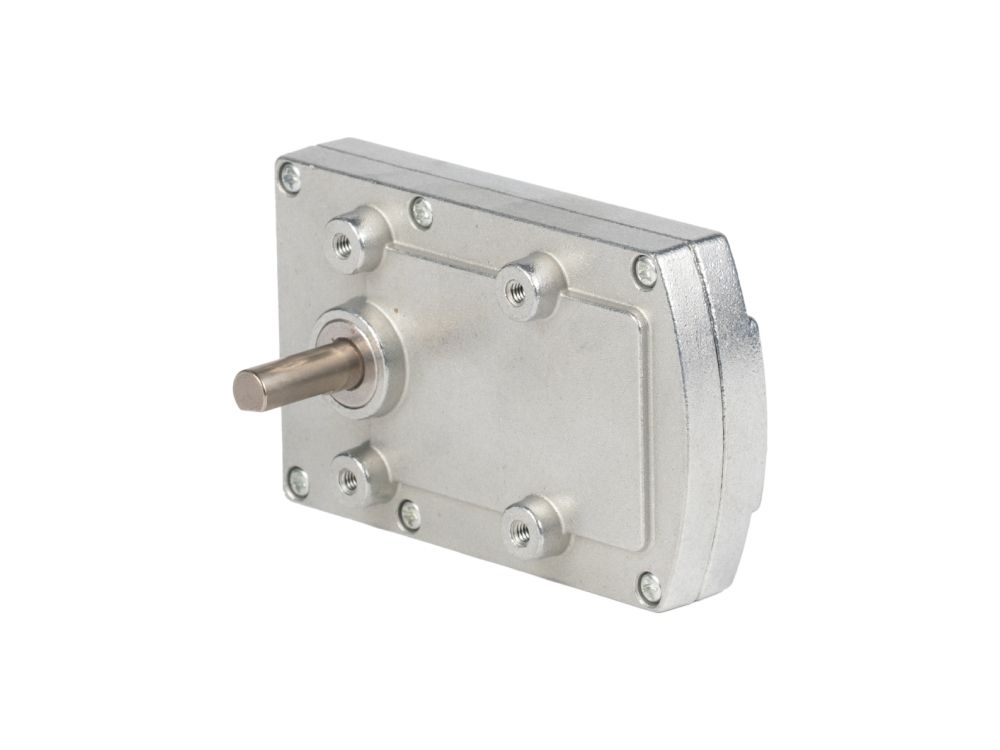

Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Length | Gearbox Width | Gearbox Height | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TT3600 | Spur Gearbox - Flat | TT | 36 :1 | 3 | 95 mm | 60 mm | 16 mm | 3 kgf·cm | 9 kgf·cm | 73 % | 321 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT6600 | Spur Gearbox - Flat | TT | 66 :1 | 3 | 95 mm | 60 mm | 16 mm | 6 kgf·cm | 18 kgf·cm | 73 % | 321 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT9400 | Spur Gearbox - Flat | TT | 94 :1 | 3 | 95 mm | 60 mm | 16 mm | 8 kgf·cm | 24 kgf·cm | 73 % | 321 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT1490 | Spur Gearbox - Flat | TT | 149 :1 | 4 | 95 mm | 60 mm | 16 mm | 8 kgf·cm | 24 kgf·cm | 66 % | 330 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT1960 | Spur Gearbox - Flat | TT | 196 :1 | 4 | 95 mm | 60 mm | 16 mm | 8 kgf·cm | 24 kgf·cm | 66 % | 330 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT2110 | Spur Gearbox - Flat | TT | 211 :1 | 4 | 95 mm | 60 mm | 16 mm | 8 kgf·cm | 24 kgf·cm | 66 % | 330 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT2780 | Spur Gearbox - Flat | TT | 278 :1 | 4 | 95 mm | 60 mm | 16 mm | 10 kgf·cm | 30 kgf·cm | 66 % | 330 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT3950 | Spur Gearbox - Flat | TT | 395 :1 | 4 | 95 mm | 60 mm | 16 mm | 10 kgf·cm | 30 kgf·cm | 66 % | 330 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT6250 | Spur Gearbox - Flat | TT | 625 :1 | 5 | 95 mm | 60 mm | 16 mm | 10 kgf·cm | 30 kgf·cm | 59 % | 339 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT8300 | Spur Gearbox - Flat | TT | 830 :1 | 5 | 95 mm | 60 mm | 16 mm | 10 kgf·cm | 30 kgf·cm | 59 % | 339 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
| TT1166 | Spur Gearbox - Flat | TT | 1,166 :1 | 5 | 95 mm | 60 mm | 16 mm | 10 kgf·cm | 30 kgf·cm | 59 % | 339 g | 8 mm | φ 3.17 / φ 5 mm | -30 ~ 65 C | Zinc Alloy （Die casting） | Powder Metallurgy (Fe) / Plastics / Steel | Helical Gear / Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.1 mm | 3 ° | 0.5 / 0.6 / 0.8 M |
Technical Specifications
| Gearbox Type | Spur Gearbox - Flat |
|---|---|
| Gearbox Model | TT |
| Gear Ratio | 36 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Length | 95 mm |
| Gearbox Width | 60 mm |
| Gearbox Height | 16 mm |
| Max Continuous Torque | 3 kgf·cm |
| Breaking Torque | 9 kgf·cm |
| Gearbox Efficiency | 73 % |
| Gearbox Weight | 321 g |
| Shaft Diameter | 8 mm |
| Pinion Hole Diameter | φ 3.17 / φ 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy （Die casting） |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Helical Gear / Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.1 mm |
| Backlash | 3 ° |
| Gear Module | 0.5 / 0.6 / 0.8 M |
