Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Diameter | Gearbox Length | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TG4010000 | Spur Gearbox - Round | TG40 | 10 :1 | 3 | 40 mm | 32 mm | 3 kgf·cm | 9 kgf·cm | 81 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4014400 | Spur Gearbox - Round | TG40 | 14.4 :1 | 3 | 40 mm | 32 mm | 3 kgf·cm | 9 kgf·cm | 81 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4025800 | Spur Gearbox - Round | TG40 | 25.8 :1 | 4 | 40 mm | 32 mm | 5 kgf·cm | 15 kgf·cm | 73 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4035700 | Spur Gearbox - Round | TG40 | 35.7 :1 | 4 | 40 mm | 32 mm | 5 kgf·cm | 15 kgf·cm | 73 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4065400 | Spur Gearbox - Round | TG40 | 65.4 :1 | 5 | 40 mm | 32 mm | 8 kgf·cm | 24 kgf·cm | 65 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4092700 | Spur Gearbox - Round | TG40 | 92.7 :1 | 5 | 40 mm | 32 mm | 8 kgf·cm | 24 kgf·cm | 65 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4012860 | Spur Gearbox - Round | TG40 | 128.6 :1 | 5 | 40 mm | 32 mm | 8 kgf·cm | 24 kgf·cm | 65 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4023540 | Spur Gearbox - Round | TG40 | 235.4 :1 | 6 | 40 mm | 32 mm | 10 kgf·cm | 30 kgf·cm | 59 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4033380 | Spur Gearbox - Round | TG40 | 333.8 :1 | 6 | 40 mm | 32 mm | 15 kgf·cm | 45 kgf·cm | 59 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4046280 | Spur Gearbox - Round | TG40 | 462.8 :1 | 6 | 40 mm | 32 mm | 15 kgf·cm | 45 kgf·cm | 59 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4084730 | Spur Gearbox - Round | TG40 | 847.3 :1 | 7 | 40 mm | 32 mm | 15 kgf·cm | 45 kgf·cm | 50 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4012016 | Spur Gearbox - Round | TG40 | 1201.6 :1 | 7 | 40 mm | 32 mm | 15 kgf·cm | 45 kgf·cm | 50 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |
| TG4016662 | Spur Gearbox - Round | TG40 | 1666.2 :1 | 7 | 40 mm | 32 mm | 15 kgf·cm | 45 kgf·cm | 50 % | 6 mm | φ3.17 mm | -30 ~ 65 C | Zinc Alloy (Die casting) | Powder Metallurgy (Fe) / Plastics / Steel | Spur Gear | Sleeve Bearing | FUMIO | 0.35 mm | 0.05 mm | 2 ° | 0.6 / 0.8 M |

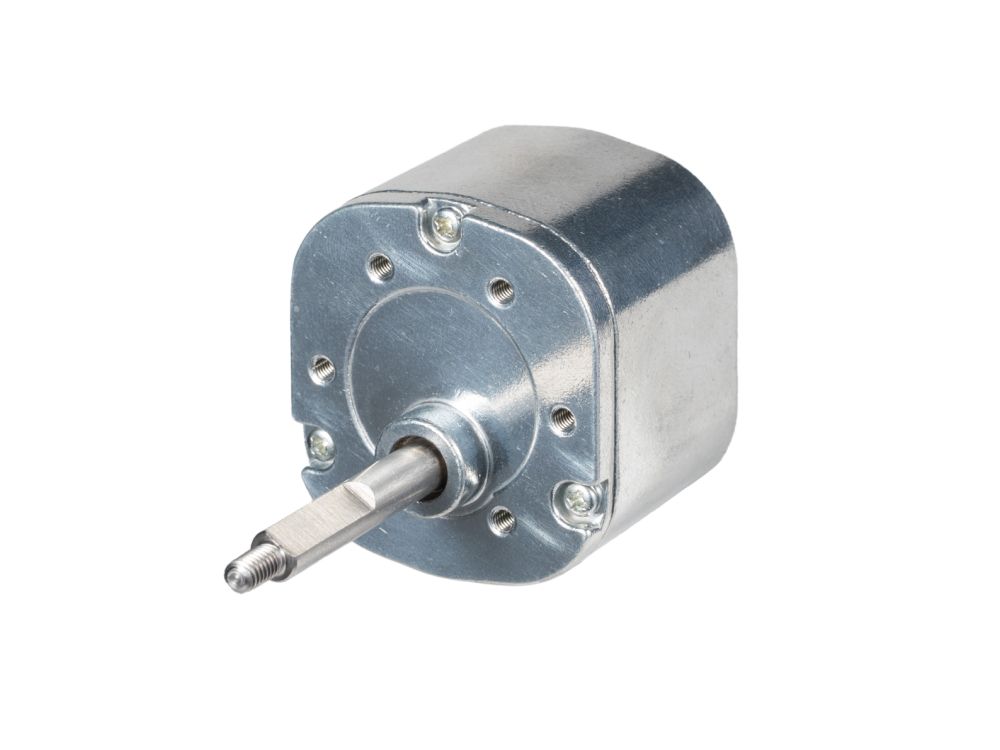

Technical Specifications
| Gearbox Type | Spur Gearbox - Round |
|---|---|
| Gearbox Model | TG40 |
| Gear Ratio | 10 :1 |
| Number Of Gear Stages | 3 |
| Gearbox Diameter | 40 mm |
| Gearbox Length | 32 mm |
| Max Continuous Torque | 3 kgf·cm |
| Breaking Torque | 9 kgf·cm |
| Gearbox Efficiency | 81 % |
| Shaft Diameter | 6 mm |
| Pinion Hole Diameter | φ3.17 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Zinc Alloy (Die casting) |
| Gear Material | Powder Metallurgy (Fe) / Plastics / Steel |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Sleeve Bearing |
| Lubricant In Gearbox | FUMIO |
| Axial Play | 0.35 mm |
| Radial Play | 0.05 mm |
| Backlash | 2 ° |
| Gear Module | 0.6 / 0.8 M |
