Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Diameter | Gearbox Length | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG523700 | Planetary Gear Motor | PG52-3.7K | 3.7 :1 | 1 | 52 mm | 27.3 mm | 100 kgf·cm | 300 kgf·cm | 90 % | 320 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG525200 | Planetary Gear Motor | PG52-5.2K | 5.2 :1 | 1 | 52 mm | 27.3 mm | 100 kgf·cm | 300 kgf·cm | 90 % | 320 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG521370 | Planetary Gear Motor | PG52-13.7K | 13.7 :1 | 2 | 52 mm | 52.3 mm | 200 kgf·cm | 600 kgf·cm | 81 % | 453 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG521920 | Planetary Gear Motor | PG52-19.2K | 19.2 :1 | 2 | 52 mm | 52.3 mm | 200 kgf·cm | 600 kgf·cm | 81 % | 453 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG522690 | Planetary Gear Motor | PG52-26.9K | 26.9 :1 | 2 | 52 mm | 52.3 mm | 200 kgf·cm | 600 kgf·cm | 81 % | 453 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG525090 | Planetary Gear Motor | PG52-50.9K | 50.9 :1 | 3 | 52 mm | 68.5 mm | 400 kgf·cm | 1,200 kgf·cm | 72 % | 600 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG527120 | Planetary Gear Motor | PG52-71.2K | 71.2 :1 | 3 | 52 mm | 68.5 mm | 400 kgf·cm | 1,200 kgf·cm | 72 % | 600 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG529950 | Planetary Gear Motor | PG52-99.5K | 99.5 :1 | 3 | 52 mm | 68.5 mm | 400 kgf·cm | 1,200 kgf·cm | 72 % | 600 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG521880 | Planetary Gear Motor | PG52-188K | 188 :1 | 4 | 52 mm | 84.7 mm | 400 kgf·cm | 1,200 kgf·cm | 60 % | 755 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG522640 | Planetary Gear Motor | PG52-264K | 264 :1 | 4 | 52 mm | 84.7 mm | 400 kgf·cm | 1,200 kgf·cm | 60 % | 755 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG525160 | Planetary Gear Motor | PG52-516K | 516 :1 | 4 | 52 mm | 84.7 mm | 400 kgf·cm | 1,200 kgf·cm | 60 % | 755 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG526990 | Planetary Gear Motor | PG52-699K | 699 :1 | 5 | 52 mm | 100.9 mm | 400 kgf·cm | 1,200 kgf·cm | 50 % | 906 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG529770 | Planetary Gear Motor | PG52-977K | 977 :1 | 5 | 52 mm | 100.9 mm | 400 kgf·cm | 1,200 kgf·cm | 50 % | 906 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |
| PG521367 | Planetary Gear Motor | PG52-1367K | 1,367 :1 | 5 | 52 mm | 100.9 mm | 400 kgf·cm | 1,200 kgf·cm | 50 % | 906 g | 12 mm | 4.5 / 7.96 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Spur Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.8 M |

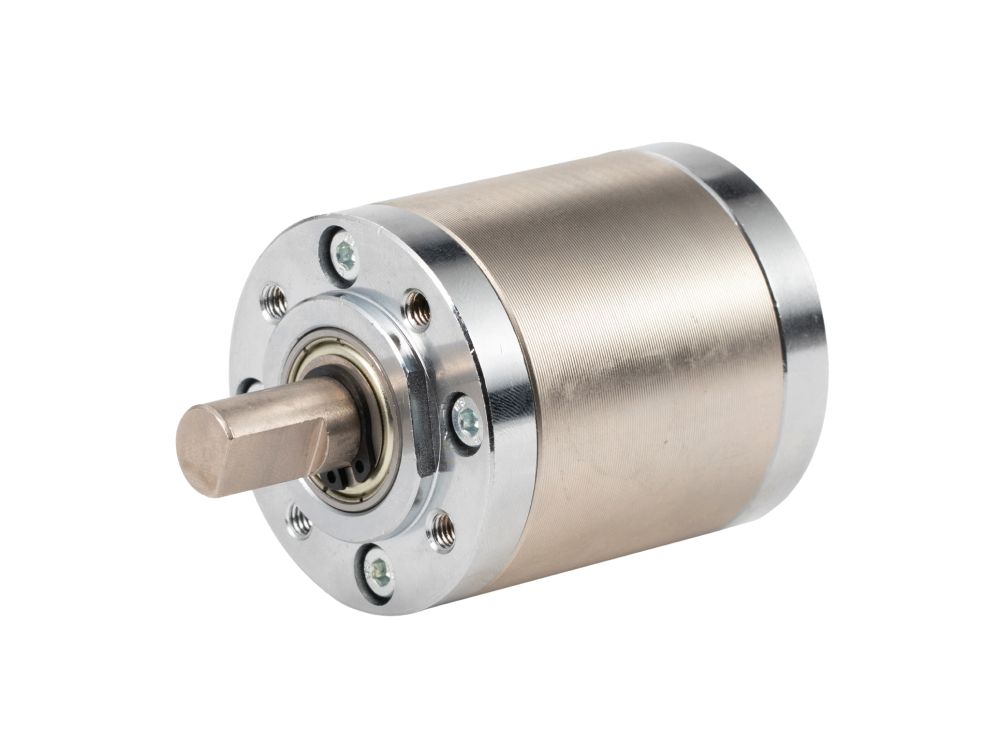

Technical Specifications
| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG52-3.7K |
| Gear Ratio | 3.7 :1 |
| Number Of Gear Stages | 1 |
| Gearbox Diameter | 52 mm |
| Gearbox Length | 27.3 mm |
| Max Continuous Torque | 100 kgf·cm |
| Breaking Torque | 300 kgf·cm |
| Gearbox Efficiency | 90 % |
| Gearbox Weight | 320 g |
| Shaft Diameter | 12 mm |
| Pinion Hole Diameter | 4.5 / 7.96 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Spur Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.8 M |
