Model & Selection
Dimensional Drawing
Model & Specification Comparison
| SKU | Gearbox Type | Gearbox Model | Gear Ratio | Number Of Gear Stages | Gearbox Diameter | Gearbox Length | Max Continuous Torque | Breaking Torque | Gearbox Efficiency | Gearbox Weight | Shaft Diameter | Pinion Hole Diameter | Operating Temperature Range | Gearbox Housing Material | Gear Material | Gear Design | Output Shaft Bearing | Lubricant In Gearbox | Axial Play | Radial Play | Backlash | Gear Module |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PG453700 | Planetary Gear Motor | PG45-3.7K | 3.7 :1 | 1 | 45 mm | 33.5 mm | 50 kgf·cm | 150 kgf·cm | 90 % | 256 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG454300 | Planetary Gear Motor | PG45-4.3K | 4.3 :1 | 1 | 45 mm | 33.5 mm | 50 kgf·cm | 150 kgf·cm | 90 % | 256 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG451600 | Planetary Gear Motor | PG45-16K | 16 :1 | 2 | 45 mm | 44.4 mm | 100 kgf·cm | 300 kgf·cm | 81 % | 369 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG452200 | Planetary Gear Motor | PG45-22K | 22 :1 | 2 | 45 mm | 44.4 mm | 100 kgf·cm | 300 kgf·cm | 81 % | 369 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG455900 | Planetary Gear Motor | PG45-59K | 59 :1 | 3 | 45 mm | 55.6 mm | 200 kgf·cm | 600 kgf·cm | 72 % | 477 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG458300 | Planetary Gear Motor | PG45-83K | 83 :1 | 3 | 45 mm | 55.6 mm | 200 kgf·cm | 600 kgf·cm | 72 % | 477 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG451160 | Planetary Gear Motor | PG45-116K | 116 :1 | 3 | 45 mm | 55.6 mm | 200 kgf·cm | 600 kgf·cm | 72 % | 477 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG452190 | Planetary Gear Motor | PG45-219K | 219 :1 | 4 | 45 mm | 66.9 mm | 200 kgf·cm | 600 kgf·cm | 60 % | 596 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG453070 | Planetary Gear Motor | PG45-307K | 307 :1 | 4 | 45 mm | 66.9 mm | 200 kgf·cm | 600 kgf·cm | 60 % | 596 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG454290 | Planetary Gear Motor | PG45-429K | 429 :1 | 4 | 45 mm | 66.9 mm | 200 kgf·cm | 600 kgf·cm | 60 % | 596 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG456000 | Planetary Gear Motor | PG45-600K | 600 :1 | 4 | 45 mm | 66.9 mm | 200 kgf·cm | 600 kgf·cm | 60 % | 596 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG458130 | Planetary Gear Motor | PG45-813K | 813 :1 | 5 | 45 mm | 78.2 mm | 200 kgf·cm | 600 kgf·cm | 50 % | 707 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG451137 | Planetary Gear Motor | PG45-1137K | 1,137 :1 | 5 | 45 mm | 78.2 mm | 200 kgf·cm | 600 kgf·cm | 50 % | 707 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
| PG451590 | Planetary Gear Motor | PG45-1590K | 1,590 :1 | 5 | 45 mm | 78.2 mm | 200 kgf·cm | 600 kgf·cm | 50 % | 707 g | 10 mm | 3.19 / 5 mm | -30 ~ 65 C | Powder Metallurgy (Fe) | Powder Metallurgy (Fe) / Plastics | Helical Gear | Ball Bearing | Graphene oil | ≤ 0.2 mm | ≤ 0.1 mm | ≤ 1.5 ° | 0.6 M |
Technical Specifications

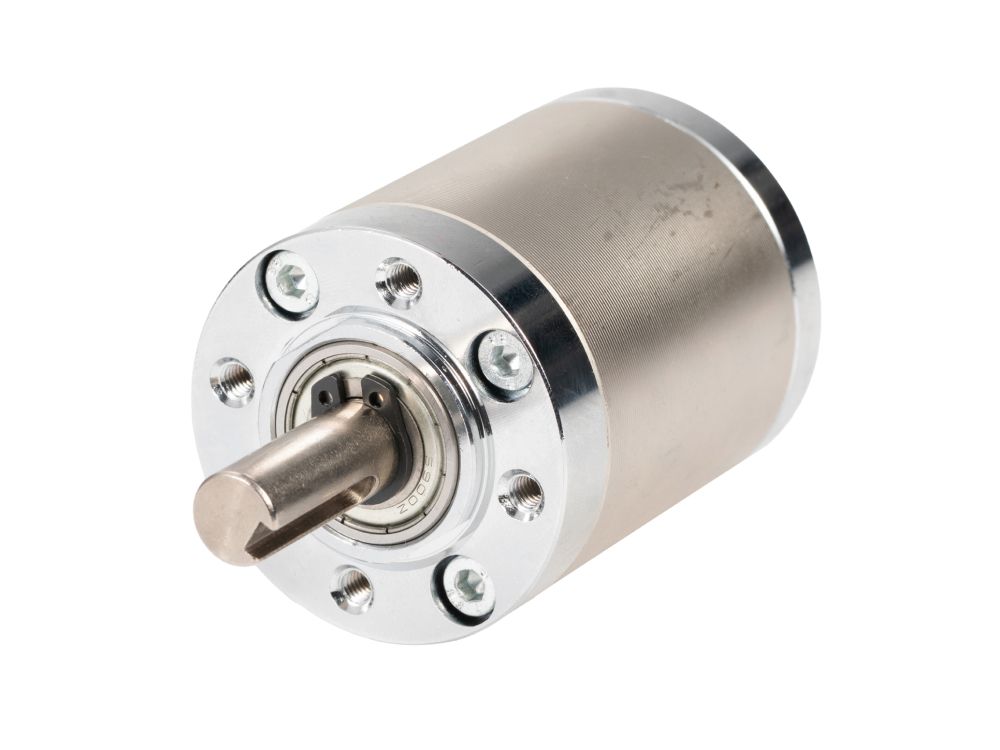

| Gearbox Type | Planetary Gear Motor |
|---|---|
| Gearbox Model | PG45-3.7K |
| Gear Ratio | 3.7 :1 |
| Number Of Gear Stages | 1 |
| Gearbox Diameter | 45 mm |
| Gearbox Length | 33.5 mm |
| Max Continuous Torque | 50 kgf·cm |
| Breaking Torque | 150 kgf·cm |
| Gearbox Efficiency | 90 % |
| Gearbox Weight | 256 g |
| Shaft Diameter | 10 mm |
| Pinion Hole Diameter | 3.19 / 5 mm |
| Operating Temperature Range | -30 ~ 65 C |
| Gearbox Housing Material | Powder Metallurgy (Fe) |
| Gear Material | Powder Metallurgy (Fe) / Plastics |
| Gear Design | Helical Gear |
| Output Shaft Bearing | Ball Bearing |
| Lubricant In Gearbox | Graphene oil |
| Axial Play | ≤ 0.2 mm |
| Radial Play | ≤ 0.1 mm |
| Backlash | ≤ 1.5 ° |
| Gear Module | 0.6 M |
