Technical Specifications

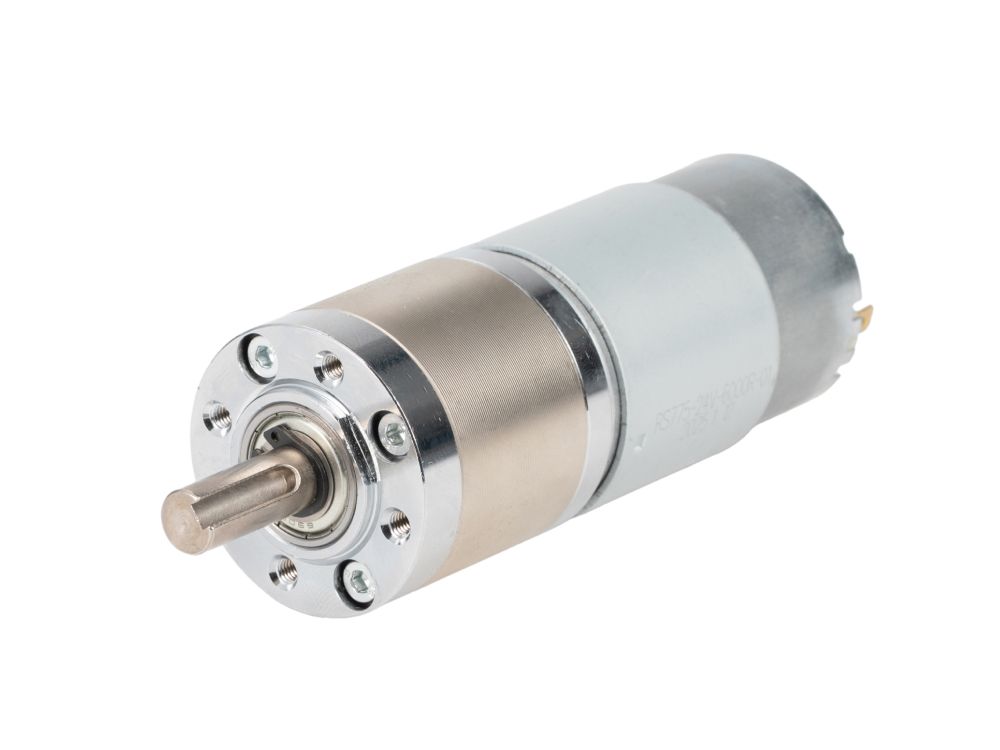

| Product Model | PG42775123000-3.7K |
|---|---|
| Gearbox Weight | 597 g |
| Rated Voltage | 12 V |
| No Load Speed | 810.81 rpm |
| Rated Speed | 662 rpm |
| No Load Current | 420 mA |
| Rated Current | 1,200 mA |
| Stall Current | 6,000 mA |
| Rated Torque | 1166 gf·cm |
| Stall Torque | 7592.4 gf·cm |
| Rated Power | 7.93 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 42 mm |
| Gearbox Length | 97.8 mm |
| Gear Ratio | 3.7 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 50 kgf·cm |
| Instantaneous Break Torque | 150 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 800 hours |
| Noise Level @ 30cm | 53 |
