Technical Specifications

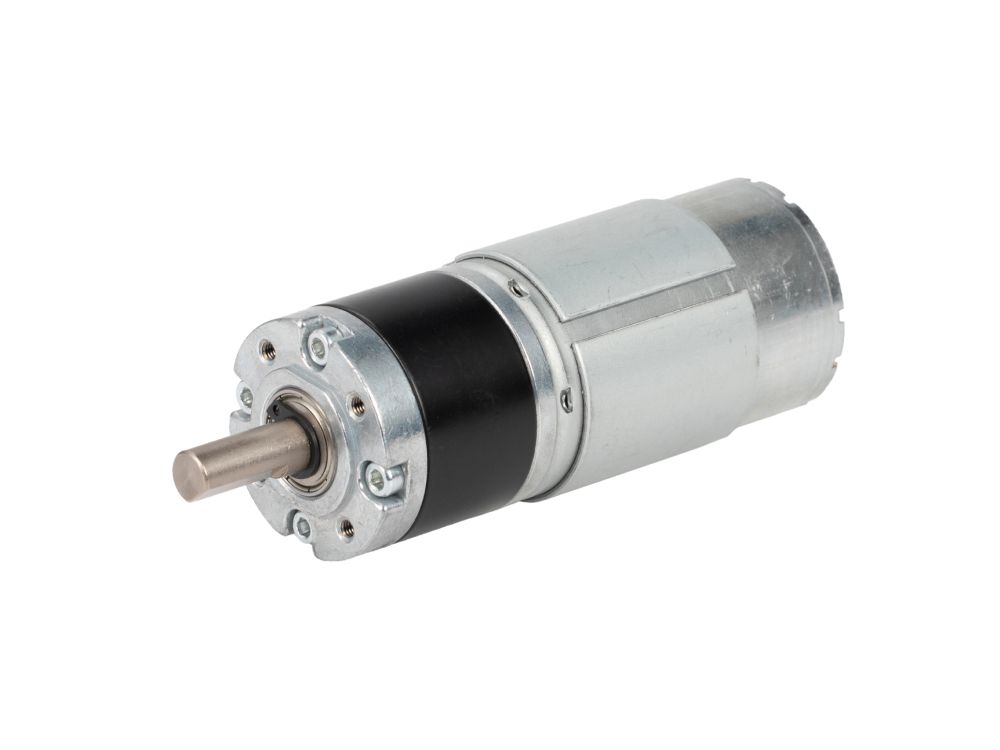

| Product Model | PG36555123000-5K |
|---|---|
| Gearbox Weight | 375 g |
| Rated Voltage | 12 V |
| No Load Speed | 600 rpm |
| Rated Speed | 520 rpm |
| No Load Current | 180 mA |
| Rated Current | 600 mA |
| Stall Current | 3,100 mA |
| Rated Torque | 806 gf·cm |
| Stall Torque | 7,425 gf·cm |
| Rated Power | 4.30 W |
| Max Efficiency | 64.800 % |
| Motor Diameter | 36 mm |
| Gearbox Length | 86.9 mm |
| Gear Ratio | 5 :1 |
| Number Of Gear Stages | 1 |
| Max Continuous Torque | 20 kgf·cm |
| Instantaneous Break Torque | 60 kgf·cm |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 600 hours |
