Model & Selection
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Connector | Working Lifespan | Operating Temperature Range | Housing Material | Direction Of Rotation | Number Of Pole Pairs | Number Of Phases | Rotor Inertia | Speed Constant | Torque Constant | Single Phase Resistance | DQ Inductance | Friction | Magnet Material | Enameled Wire Material | Insulation Class | Hall Sensor Type | Number of Halls | Electrical Angle | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42243600 | MX4210KV150-24V | Outrunner BLDC Motor | 24 V | 3,600 rpm | 2,550 rpm | 0.23 mA | 4.20 mA | 11.50 mA | 3 gf·cm | 6.83 gf·cm | 74 W | 85 % | 52 mm | 34 mm | 220 g | 6.35 mm | Single | GH1.25-F-5P | 3,000 hours | -30 ~ 65 C | Anodized Aluminum Alloy Housing | CW/CCW | 7 | 3 | 6.500 g·cm² | 150 KV | 65 mNm/A | 0.41 mOhm | 200 uH | 0.50 µN·m·s | Nd2Fe14B | Enameled Copper Wire | UEW | bipolar self-locking hall | 3 | 120 ° | PG52 |
| 42487200 | MX4210KV150-48V | Outrunner BLDC Motor | 48 V | 7,200 rpm | 3,100 rpm | 0.30 mA | 8.40 mA | 25 mA | 6 gf·cm | 13.26 gf·cm | 256 W | 86 % | 52 mm | 34 mm | 220 g | 6.35 mm | Single | GH1.25-F-5P | 3,000 hours | -30 ~ 65 C | Anodized Aluminum Alloy Housing | CW/CCW | 7 | 3 | 6.500 g·cm² | 150 KV | 65 mNm/A | 0.41 mOhm | 200 uH | 0.50 µN·m·s | Nd2Fe14B | Enameled Copper Wire | UEW | bipolar self-locking hall | 3 | 120 ° | PG52 |
Technical Specifications

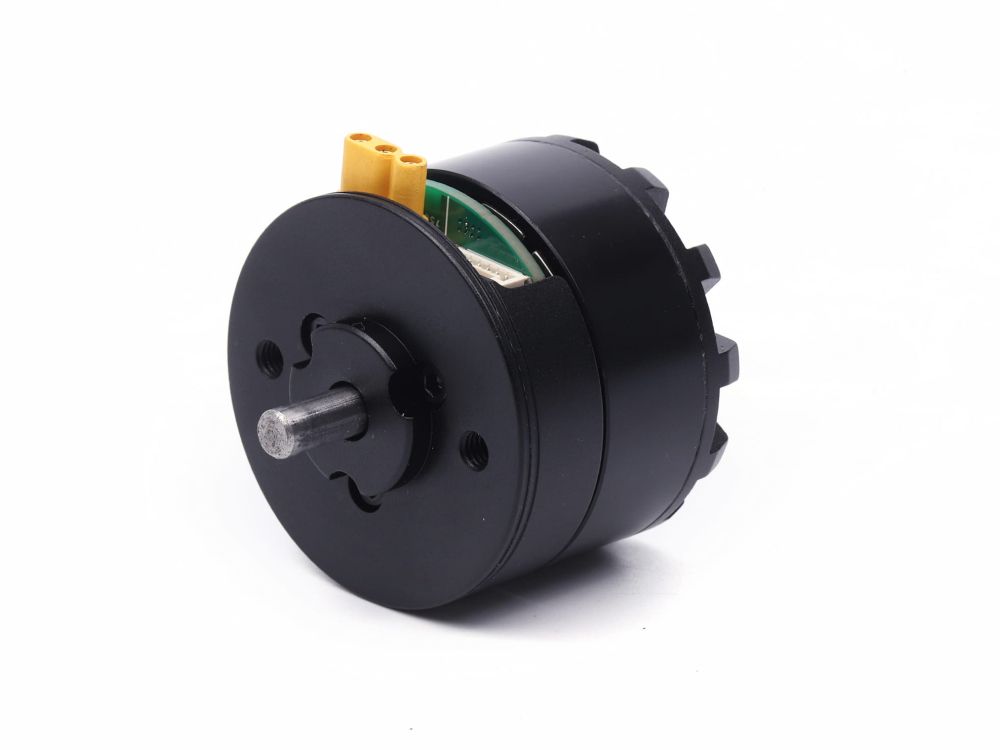

| Motor Model | MX4210KV150-24V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 24 V |
| No Load Speed | 3,600 rpm |
| Rated Speed | 2,550 rpm |
| No Load Current | 0.23 mA |
| Rated Current | 4.20 mA |
| Stall Current | 11.50 mA |
| Rated Torque | 3 gf·cm |
| Stall Torque | 6.83 gf·cm |
| Rated Power | 74 W |
| Max Efficiency | 85 % |
| Motor Diameter | 52 mm |
| Motor Length | 34 mm |
| Motor Weight | 220 g |
| Shaft Diameter | 6.35 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-5P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 6.500 g·cm² |
| Speed Constant | 150 KV |
| Torque Constant | 65 mNm/A |
| Single Phase Resistance | 0.41 mOhm |
| DQ Inductance | 200 uH |
| Friction | 0.50 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG52 |
