Model & Selection
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Connector | Working Lifespan | Operating Temperature Range | Housing Material | Direction Of Rotation | Number Of Pole Pairs | Number Of Phases | Rotor Inertia | Speed Constant | Torque Constant | Single Phase Resistance | DQ Inductance | Friction | Magnet Material | Enameled Wire Material | Insulation Class | Hall Sensor Type | Number of Halls | Electrical Angle | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 22124300 | MX2210KV360-12V | Outrunner BLDC Motor | 12 V | 4,300 rpm | 3,300 rpm | 150 mA | 1,300 mA | 4,500 mA | 330 gf·cm | 1,050 gf·cm | 15 W | 83 % | 28 mm | 26 mm | 52 g | 3 mm | Single | GH1.25-F-8P | 3,000 hours | -30 ~ 65 C | Anodized Aluminum Alloy Housing | CW/CCW | 7 | 3 | 0.750 g·cm² | 360 KV | 23 mNm/A | 750 mOhm | 100 uH | 0.50 µN·m·s | Nd2Fe14B | Enameled Copper Wire | UEW | bipolar self-locking hall | 3 | 120 ° | PG28 |
| 22248600 | MX2210KV360-24V | Outrunner BLDC Motor | 24 V | 8,600 rpm | 7,200 rpm | 260 mA | 1,700 mA | 8,000 mA | 450 gf·cm | 2,100 gf·cm | 45 W | 84 % | 28 mm | 26 mm | 52 g | 3 mm | Single | GH1.25-F-8P | 3,000 hours | -30 ~ 65 C | Anodized Aluminum Alloy Housing | CW/CCW | 7 | 3 | 0.750 g·cm² | 360 KV | 23 mNm/A | 750 mOhm | 100 uH | 0.50 µN·m·s | Nd2Fe14B | Enameled Copper Wire | UEW | bipolar self-locking hall | 3 | 120 ° | PG28 |
Technical Specifications

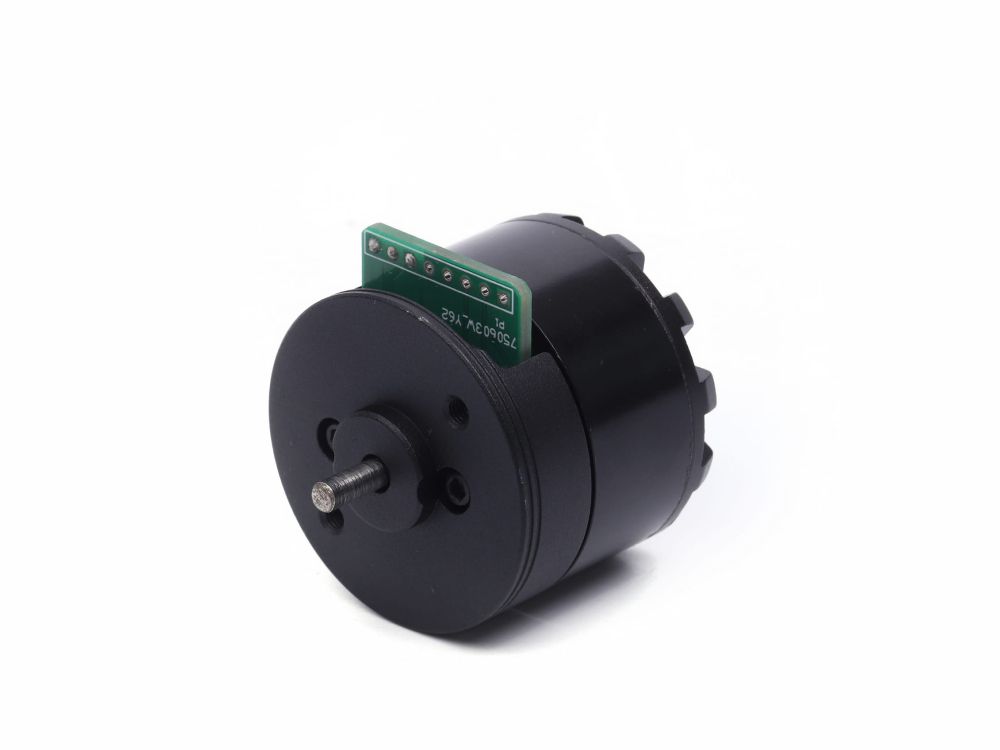

| Motor Model | MX2210KV360-12V |
|---|---|
| Motor Type | Outrunner BLDC Motor |
| Rated Voltage | 12 V |
| No Load Speed | 4,300 rpm |
| Rated Speed | 3,300 rpm |
| No Load Current | 150 mA |
| Rated Current | 1,300 mA |
| Stall Current | 4,500 mA |
| Rated Torque | 330 gf·cm |
| Stall Torque | 1,050 gf·cm |
| Rated Power | 15 W |
| Max Efficiency | 83 % |
| Motor Diameter | 28 mm |
| Motor Length | 26 mm |
| Motor Weight | 52 g |
| Shaft Diameter | 3 mm |
| Shaft Configuration | Single |
| Connector | GH1.25-F-8P |
| Working Lifespan | 3,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Housing Material | Anodized Aluminum Alloy Housing |
| Direction Of Rotation | CW/CCW |
| Number Of Pole Pairs | 7 |
| Number Of Phases | 3 |
| Rotor Inertia | 0.750 g·cm² |
| Speed Constant | 360 KV |
| Torque Constant | 23 mNm/A |
| Single Phase Resistance | 750 mOhm |
| DQ Inductance | 100 uH |
| Friction | 0.50 µN·m·s |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor Type | bipolar self-locking hall |
| Number of Halls | 3 |
| Electrical Angle | 120 ° |
| Gearbox | PG28 |
