Model & Selection
Model & Specification Comparison
Technical Specifications

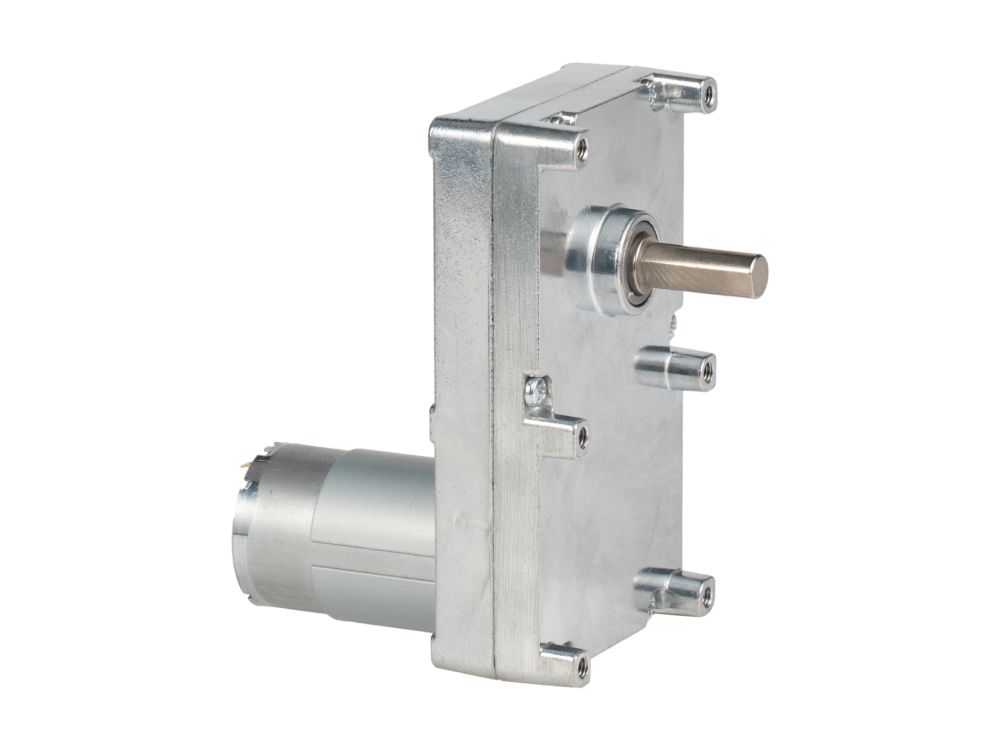

| Product Model | GF555123000- |
|---|---|
| Gearbox Weight | 850 g |
| Rated Voltage | 12 V |
| No Load Speed | 23.622047 rpm |
| Rated Speed | 20 rpm |
| No Load Current | 180 mA |
| Rated Current | 600 mA |
| Stall Current | 3,100 mA |
| Rated Torque | 16595 gf·cm |
| Stall Torque | 152971.5 gf·cm |
| Rated Power | 3488.11 W |
| Max Efficiency | 52.560 % |
| Gearbox Length | 176 mm |
| Gear Ratio | 127 :1 |
| Number Of Gear Stages | 3 |
| Max Continuous Torque | 30 kgf·cm |
| Instantaneous Break Torque | 90 kgf·cm |
| Backlash | 3 ° |
| Operating Temperature Range | -30 ~ 65 C |
| Working Lifespan | 600 hours |
