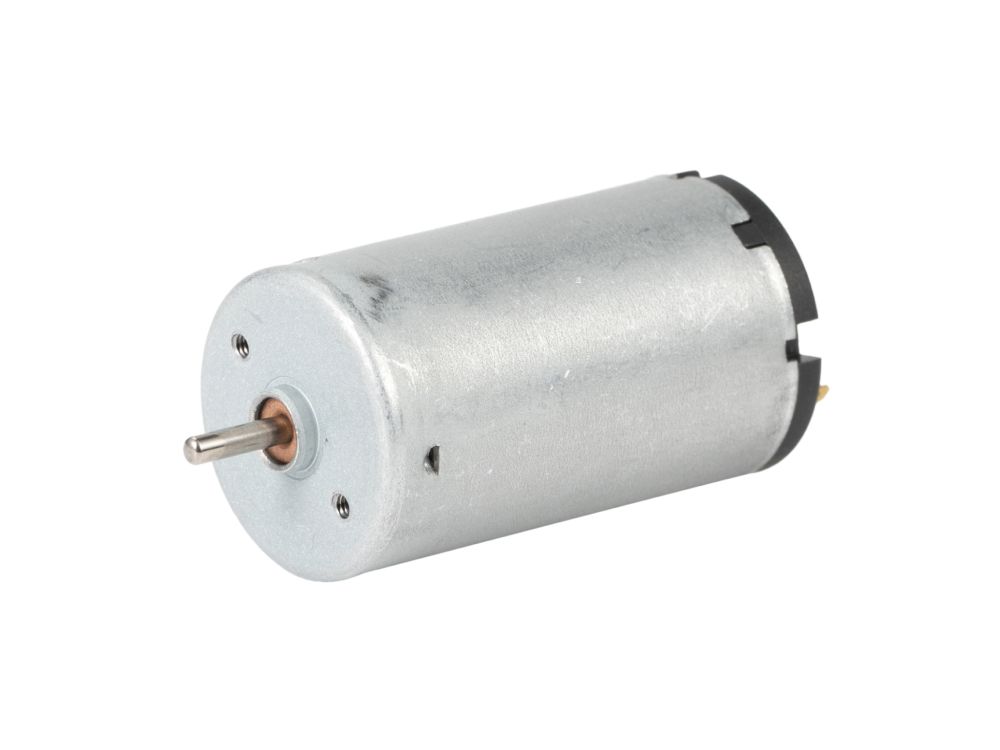

DC2238 Brushed DC Motor

$5.99MSRP

Key Data

Electrical Options4 variants

DC2238 12V 4500 RPM

SKU	Motor Model	Motor Type	Rated Voltage	No Load Speed	Rated Speed	No Load Current	Rated Current	Stall Current	Rated Torque	Stall Torque	Rated Power	Max Efficiency	Motor Diameter	Motor Length	Motor Weight	Shaft Diameter	Shaft Configuration	Connector	Working Lifespan	Operating Temperature Range	Housing Material	Direction Of Rotation	Enameled Wire Material	Magnet Material	Carbon Brush Material	Insulation Class	Number Of Pole Pairs	Gearbox
22381245	DC2238-124500	Brushed DC Motor	12 V	4,500 rpm	3,600 rpm	90 mA	270 mA	1,100 mA	35 gf·cm	160 gf·cm	1.30 W	75 %	22 mm	38.2 mm	48 g	2 mm	Single/Dual	2	250 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG22
22381260	DC2238-126000	Brushed DC Motor	12 V	6,000 rpm	4,792 rpm	110 mA	350 mA	1,350 mA	50 gf·cm	250 gf·cm	2.42 W	75 %	22 mm	38.2 mm	48 g	2 mm	Single/Dual	2	250 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG22
22382445	DC2238-244500	Brushed DC Motor	24 V	4,500 rpm	3,800 rpm	50 mA	140 mA	750 mA	35 gf·cm	265 gf·cm	1.55 W	75 %	22 mm	38.2 mm	48 g	2 mm	Single/Dual	2	250 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG22
22382460	DC2238-246000	Brushed DC Motor	24 V	6,000 rpm	5,388 rpm	65 mA	185 mA	950 mA	50 gf·cm	317 gf·cm	2.75 W	75 %	22 mm	38.2 mm	48 g	2 mm	Single/Dual	2	250 hours	-30 ~ 65 C	Electrolytic zinc coated steel	CW/CCW	Enameled copper wire	Ferrite	Metal graphite brush	UEW	2	PG22

Motor Model	DC2238-124500
Motor Type	Brushed DC Motor
Rated Voltage	12 V
No Load Speed	4,500 rpm
Rated Speed	3,600 rpm
No Load Current	90 mA
Rated Current	270 mA
Stall Current	1,100 mA
Rated Torque	35 gf·cm
Stall Torque	160 gf·cm
Rated Power	1.30 W
Max Efficiency	75 %
Motor Diameter	22 mm
Motor Length	38.2 mm
Motor Weight	48 g
Shaft Diameter	2 mm
Shaft Configuration	Single/Dual
Connector	2
Working Lifespan	250 hours
Operating Temperature Range	-30 ~ 65 C
Housing Material	Electrolytic zinc coated steel
Direction Of Rotation	CW/CCW
Enameled Wire Material	Enameled copper wire
Magnet Material	Ferrite
Carbon Brush Material	Metal graphite brush
Insulation Class	UEW
Number Of Pole Pairs	2
Gearbox	PG22
