Model & Selection
Model & Specification Comparison
| SKU | Motor Model | Motor Type | Rated Voltage | No Load Speed | Rated Speed | No Load Current | Rated Current | Stall Current | Rated Torque | Stall Torque | Rated Power | Max Efficiency | Motor Diameter | Motor Length | Motor Weight | Shaft Diameter | Shaft Configuration | Working Lifespan | Operating Temperature Range | Noise Level At 30 cm | Noise Level At 50 cm | Housing Material | Direction Of Rotation | Number Of Pole Pairs | Number Of Phases | Magnet Material | Enameled Wire Material | Insulation Class | Hall Sensor | Motor Control | Gearbox |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32187500 | BL32-187500 | Brushless DC Motor | 18 V | 7,500 rpm | 6,200 rpm | 180 mA | 710 mA | 2,840 mA | 100 gf·cm | 570 gf·cm | 8.40 W | 65 % | 32 mm | 29 mm | 80 g | 2.5 mm | Single | 5,000 hours | -30 ~ 65 C | 43 dB | 38 dB | Electrolytic zinc coated steel | Electronically reversible | 6 | 3 | Nd2Fe14B | Enameled Copper Wire | UEW | No | Sensorless Control | PG32 |
| 32246000 | BL32-246000 | Brushless DC Motor | 24 V | 6,000 rpm | 5,100 rpm | 60 mA | 260 mA | 1,160 mA | 72 gf·cm | 424 gf·cm | 3.56 W | 69 % | 32 mm | 29 mm | 80 g | 2.5 mm | Single | 5,000 hours | -30 ~ 65 C | 42 dB | 37 dB | Electrolytic zinc coated steel | Electronically reversible | 6 | 3 | Nd2Fe14B | Enameled Copper Wire | UEW | No | Sensorless Control | PG32 |
| 32367500 | BL32-367500 | Brushless DC Motor | 36 V | 7,500 rpm | 6,100 rpm | 90 mA | 420 mA | 1,400 mA | 130 gf·cm | 670 gf·cm | 6.90 W | 72 % | 32 mm | 29 mm | 80 g | 2.5 mm | Single | 5,000 hours | -30 ~ 65 C | 54 dB | 49 dB | Electrolytic zinc coated steel | Electronically reversible | 6 | 3 | Nd2Fe14B | Enameled Copper Wire | UEW | No | Sensorless Control | PG32 |
Technical Specifications

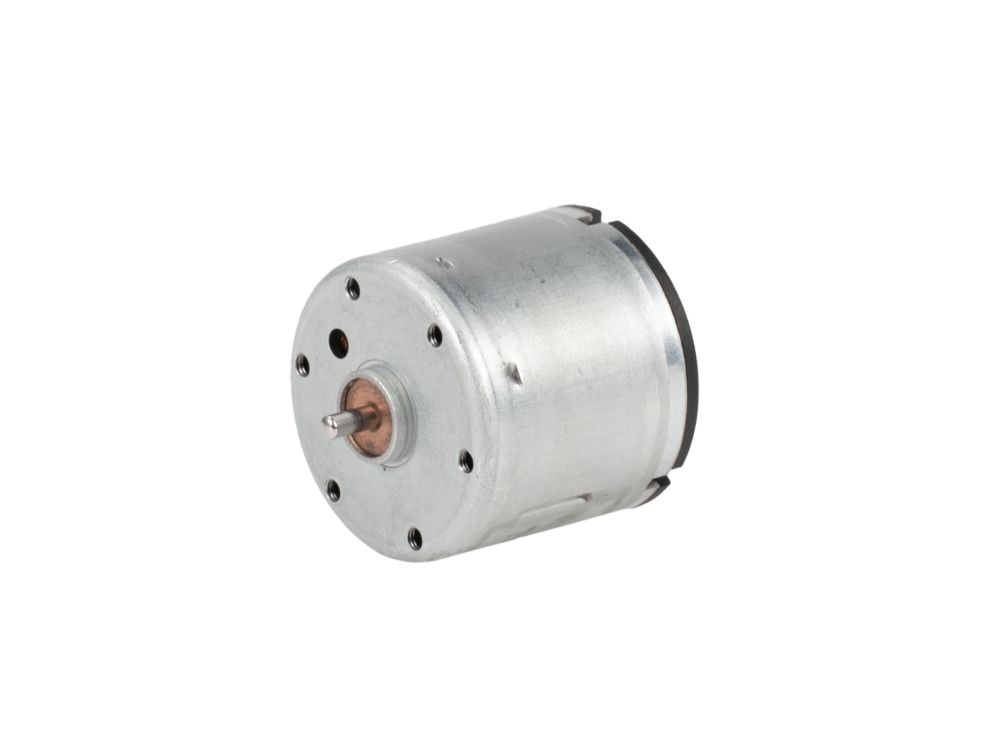

| Motor Model | BL32-187500 |
|---|---|
| Motor Type | Brushless DC Motor |
| Rated Voltage | 18 V |
| No Load Speed | 7,500 rpm |
| Rated Speed | 6,200 rpm |
| No Load Current | 180 mA |
| Rated Current | 710 mA |
| Stall Current | 2,840 mA |
| Rated Torque | 100 gf·cm |
| Stall Torque | 570 gf·cm |
| Rated Power | 8.40 W |
| Max Efficiency | 65 % |
| Motor Diameter | 32 mm |
| Motor Length | 29 mm |
| Motor Weight | 80 g |
| Shaft Diameter | 2.5 mm |
| Shaft Configuration | Single |
| Working Lifespan | 5,000 hours |
| Operating Temperature Range | -30 ~ 65 C |
| Noise Level At 30 cm | 43 dB |
| Noise Level At 50 cm | 38 dB |
| Housing Material | Electrolytic zinc coated steel |
| Direction Of Rotation | Electronically reversible |
| Number Of Pole Pairs | 6 |
| Number Of Phases | 3 |
| Magnet Material | Nd2Fe14B |
| Enameled Wire Material | Enameled Copper Wire |
| Insulation Class | UEW |
| Hall Sensor | No |
| Motor Control | Sensorless Control |
| Gearbox | PG32 |
