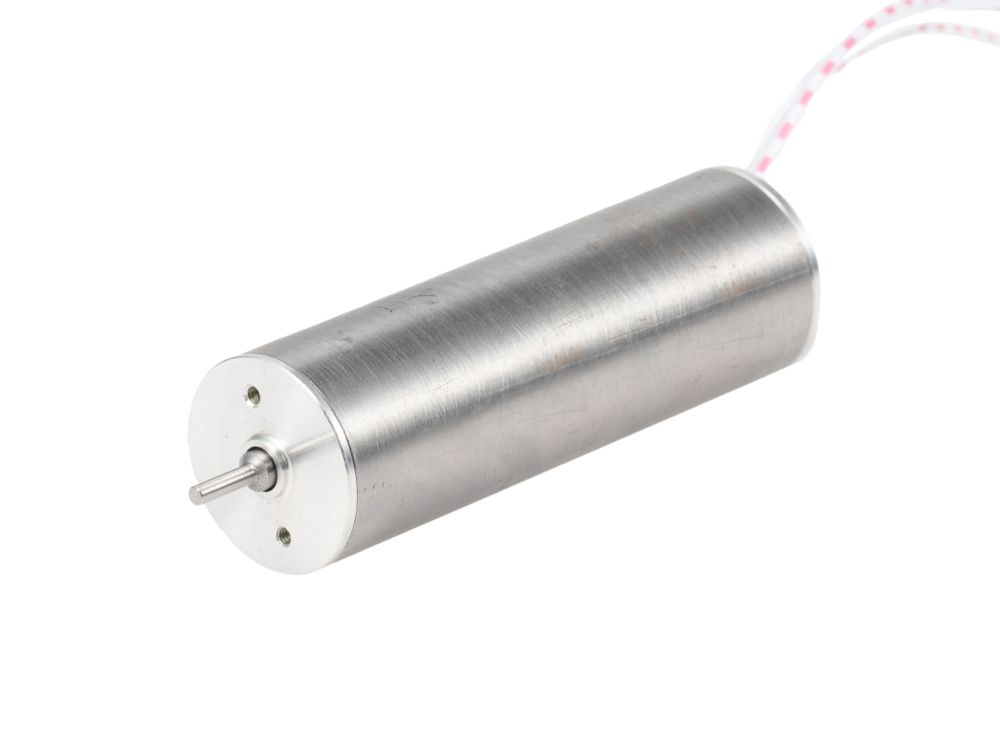

BL22 Brushless DC Motor

$16.99MSRP

Key Data

Electrical Options4 variants

BL22 12V 6000 RPM

SKU	Motor Model	Motor Type	Rated Voltage	No Load Speed	Rated Speed	No Load Current	Rated Current	Stall Current	Rated Torque	Stall Torque	Rated Power	Max Efficiency	Motor Diameter	Motor Length	Motor Weight	Shaft Diameter	Shaft Configuration	Working Lifespan	Operating Temperature Range	Housing Material	Direction Of Rotation	Number Of Pole Pairs	Magnet Material	Enameled Wire Material	Insulation Class	Hall Sensor	Motor Control	Gearbox
22126000	BL22-126000	Brushless DC Motor	12 V	6,000 rpm	5,000 rpm	180 mA	900 mA	2,800 mA	122 gf·cm	556 gf·cm	6.30 W	80 %	22 mm	67.4 mm	103 g	2 mm	Single	5,000 hours	-30 ~ 65 C	20 Steel	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG22
22121000	BL22-1210000	Brushless DC Motor	12 V	10,000 rpm	8,200 rpm	450 mA	2,200 mA	7,600 mA	163 gf·cm	866 gf·cm	13.90 W	80 %	22 mm	67.4 mm	103 g	2 mm	Single	5,000 hours	-30 ~ 65 C	20 Steel	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG22
22246000	BL22-246000	Brushless DC Motor	24 V	6,000 rpm	4,900 rpm	100 mA	500 mA	1,800 mA	138 gf·cm	607 gf·cm	7.10 W	80 %	22 mm	67.4 mm	103 g	2 mm	Single	5,000 hours	-30 ~ 65 C	20 Steel	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG22
22241000	BL22-2410000	Brushless DC Motor	24 V	10,000 rpm	8,300 rpm	250 mA	1,200 mA	4,500 mA	179 gf·cm	1,052 gf·cm	15.50 W	80 %	22 mm	67.4 mm	103 g	2 mm	Single	5,000 hours	-30 ~ 65 C	20 Steel	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG22

Motor Model	BL22-126000
Motor Type	Brushless DC Motor
Rated Voltage	12 V
No Load Speed	6,000 rpm
Rated Speed	5,000 rpm
No Load Current	180 mA
Rated Current	900 mA
Stall Current	2,800 mA
Rated Torque	122 gf·cm
Stall Torque	556 gf·cm
Rated Power	6.30 W
Max Efficiency	80 %
Motor Diameter	22 mm
Motor Length	67.4 mm
Motor Weight	103 g
Shaft Diameter	2 mm
Shaft Configuration	Single
Working Lifespan	5,000 hours
Operating Temperature Range	-30 ~ 65 C
Housing Material	20 Steel
Direction Of Rotation	Electronically reversible
Number Of Pole Pairs	8
Magnet Material	Nd2Fe14B
Enameled Wire Material	Enameled Copper Wire
Insulation Class	UEW
Hall Sensor	No
Motor Control	Sensorless external driver
Gearbox	PG22
