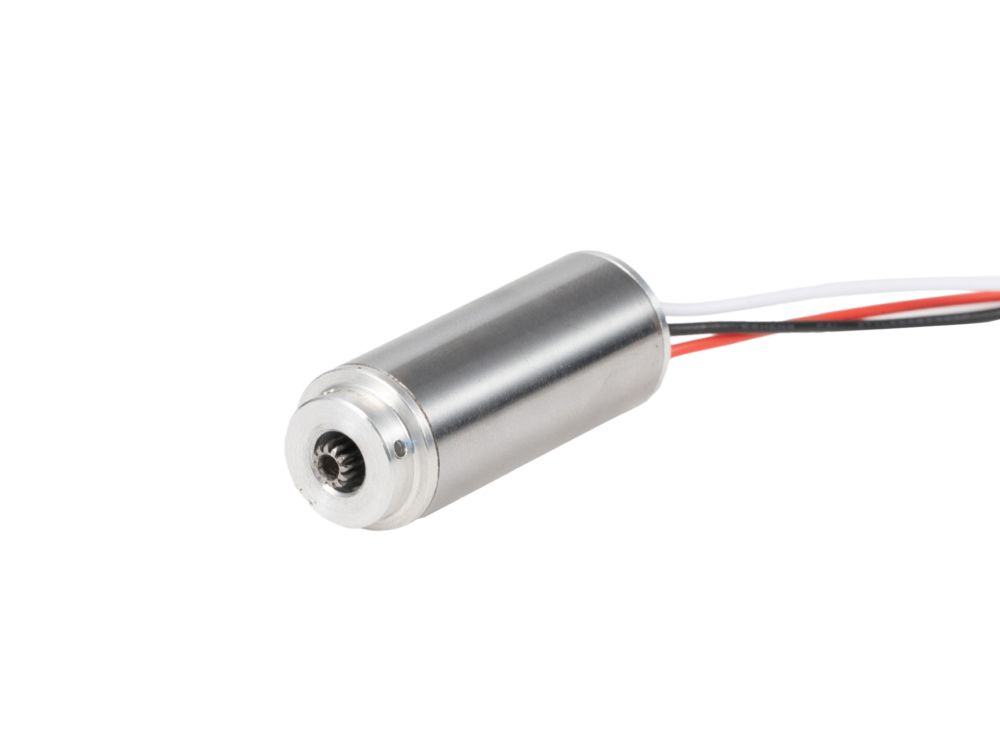

BL16 Brushless DC Motor

$16.99MSRP

Key Data

Electrical Options2 variants

BL16 12V 10000 RPM

SKU	Motor Model	Motor Type	Rated Voltage	No Load Speed	Rated Speed	No Load Current	Rated Current	Stall Current	Rated Torque	Stall Torque	Rated Power	Max Efficiency	Motor Diameter	Motor Length	Motor Weight	Shaft Configuration	Working Lifespan	Operating Temperature Range	Housing Material	Direction Of Rotation	Number Of Pole Pairs	Magnet Material	Enameled Wire Material	Insulation Class	Hall Sensor	Motor Control	Gearbox
16121000	BL16-1210000	Brushless DC Motor	12 V	10,000 rpm	8,000 rpm	230 mA	400 mA	1,200 mA	25 gf·cm	60 gf·cm	2 W	82 %	16 mm	36.5 mm	31 g	Single	3,000 hours	-30 ~ 65 C	40 Cr	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG16
16121500	BL16-1215000	Brushless DC Motor	12 V	15,000 rpm	11,000 rpm	250 mA	550 mA	1,300 mA	27 gf·cm	70 gf·cm	3 W	82 %	16 mm	36.5 mm	31 g	Single	3,000 hours	-30 ~ 65 C	40 Cr	Electronically reversible	8	Nd2Fe14B	Enameled Copper Wire	UEW	No	Sensorless external driver	PG16

Motor Model	BL16-1210000
Motor Type	Brushless DC Motor
Rated Voltage	12 V
No Load Speed	10,000 rpm
Rated Speed	8,000 rpm
No Load Current	230 mA
Rated Current	400 mA
Stall Current	1,200 mA
Rated Torque	25 gf·cm
Stall Torque	60 gf·cm
Rated Power	2 W
Max Efficiency	82 %
Motor Diameter	16 mm
Motor Length	36.5 mm
Motor Weight	31 g
Shaft Configuration	Single
Working Lifespan	3,000 hours
Operating Temperature Range	-30 ~ 65 C
Housing Material	40 Cr
Direction Of Rotation	Electronically reversible
Number Of Pole Pairs	8
Magnet Material	Nd2Fe14B
Enameled Wire Material	Enameled Copper Wire
Insulation Class	UEW
Hall Sensor	No
Motor Control	Sensorless external driver
Gearbox	PG16
