Spur Gearboxes - Flat
AF

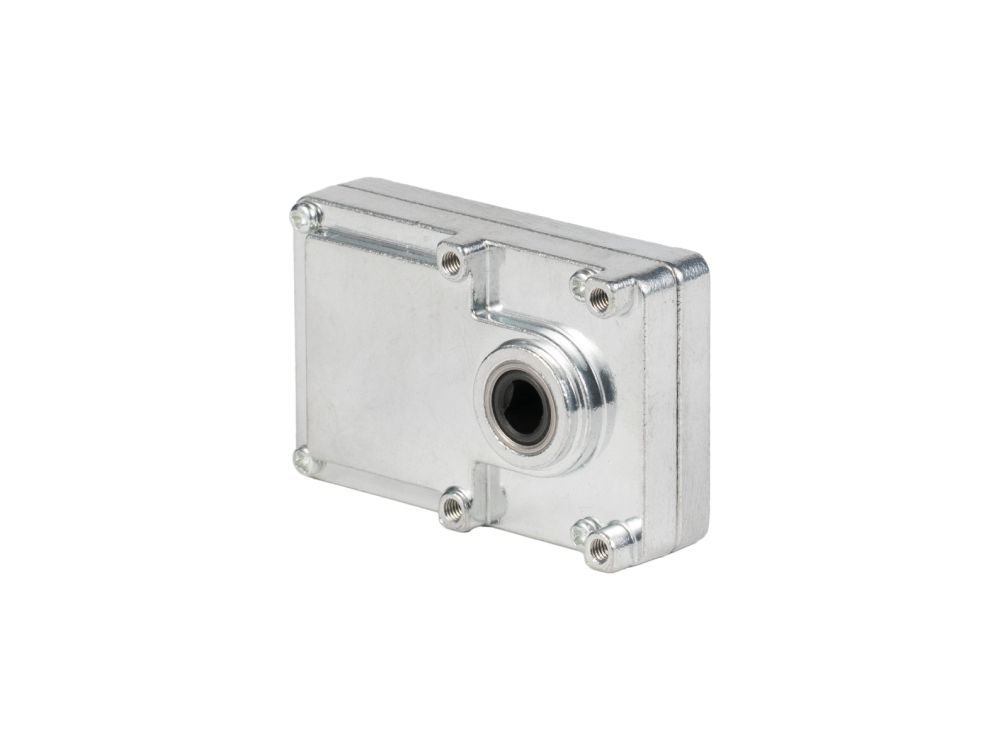

AF Spur Gearbox - Flat
$9.99
MSRP
Key Data
Gear Ratio 13.6 :1
Max Continuous Torque 3 kgf·cm
Breaking Torque 9 kgf·cm
Gearbox Efficiency 81 %
Gearbox Weight 231 g
Gearbox Options8 variants
AF 13.6:1 Request customization
Model & Selection Model & Selection
Model & Specification Comparison
SKU Gearbox Type Gearbox Model Gear Ratio Number Of Gear Stages Gearbox Length Gearbox Width Gearbox Height Max Continuous Torque Breaking Torque Gearbox Efficiency Gearbox Weight Shaft Diameter Pinion Hole Diameter Operating Temperature Range Gearbox Housing Material Gear Material Gear Design Output Shaft Bearing Lubricant In Gearbox Axial Play Radial Play Backlash Gear Module
AF1360 Spur Gearbox - Flat AF 13.6 :1 3 73 mm 47 mm 21 mm 3 kgf·cm 9 kgf·cm 81 % 231 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF3660 Spur Gearbox - Flat AF 36.6 :1 4 73 mm 47 mm 21 mm 5 kgf·cm 15 kgf·cm 73 % 231 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF6700 Spur Gearbox - Flat AF 67 :1 4 73 mm 47 mm 21 mm 5 kgf·cm 15 kgf·cm 73 % 231 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF1220 Spur Gearbox - Flat AF 122 :1 5 73 mm 47 mm 21 mm 8 kgf·cm 24 kgf·cm 65 % 235 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF1764 Spur Gearbox - Flat AF 176.4 :1 5 73 mm 47 mm 21 mm 8 kgf·cm 24 kgf·cm 65 % 235 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF2442 Spur Gearbox - Flat AF 244.2 :1 6 73 mm 47 mm 21 mm 10 kgf·cm 30 kgf·cm 59 % 239 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF3661 Spur Gearbox - Flat AF 366 :1 6 73 mm 47 mm 21 mm 10 kgf·cm 30 kgf·cm 59 % 239 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M AF5290 Spur Gearbox - Flat AF 529 :1 6 73 mm 47 mm 21 mm 10 kgf·cm 30 kgf·cm 59 % 239 g 8 mm φ 2 / φ 3.17 mm -30 ~ 65 C Zinc Alloy （Die casting） Powder Metallurgy (Fe) / Plastics / Steel Helical Gear / Spur Gear Sleeve Bearing FUMIO 0.35 mm 0.1 mm 3 ° 0.5 / 0.6 / 0.8 M
Technical Specifications Technical Specifications Gearbox Type Spur Gearbox - Flat Gearbox Model AF Gear Ratio 13.6 :1 Number Of Gear Stages 3 Gearbox Length 73 mm Gearbox Width 47 mm Gearbox Height 21 mm Max Continuous Torque 3 kgf·cm Breaking Torque 9 kgf·cm Gearbox Efficiency 81 % Gearbox Weight 231 g Shaft Diameter 8 mm Pinion Hole Diameter φ 2 / φ 3.17 mm Operating Temperature Range -30 ~ 65 C Gearbox Housing Material Zinc Alloy （Die casting） Gear Material Powder Metallurgy (Fe) / Plastics / Steel Gear Design Helical Gear / Spur Gear Output Shaft Bearing Sleeve Bearing Lubricant In Gearbox FUMIO Axial Play 0.35 mm Radial Play 0.1 mm Backlash 3 ° Gear Module 0.5 / 0.6 / 0.8 M
Downloads Downloads
Downloads
PDF
AF_Datasheet
PDF · 1.2MB
Download
